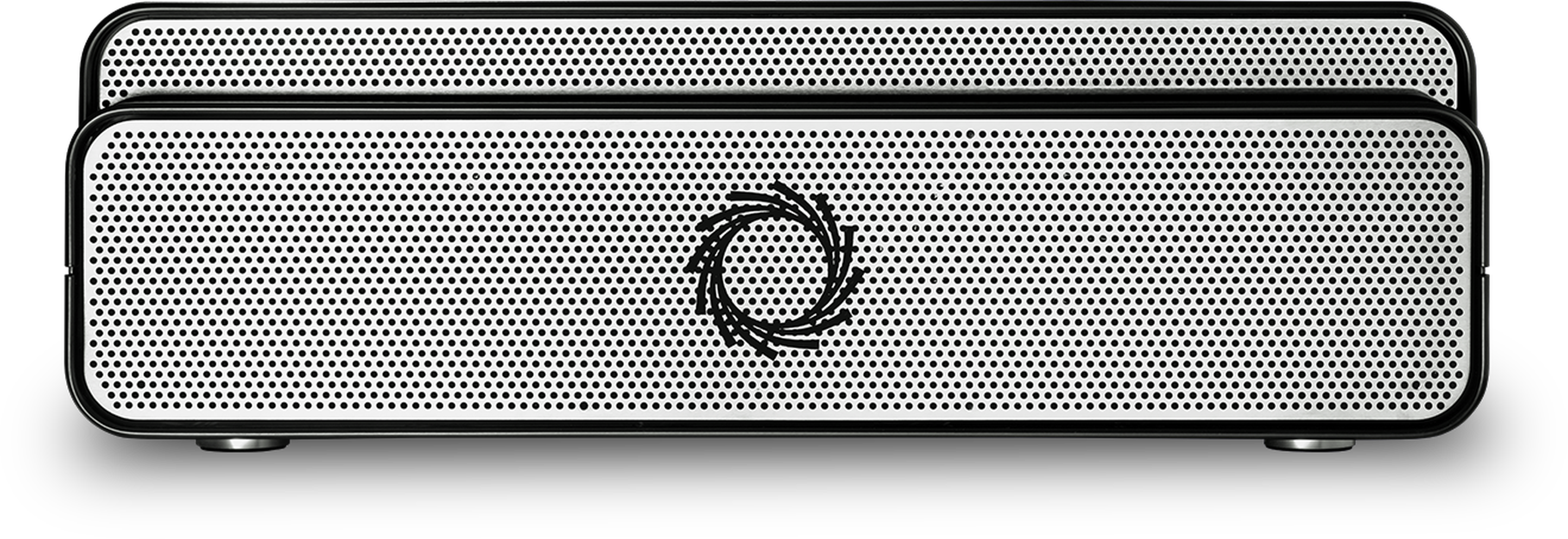

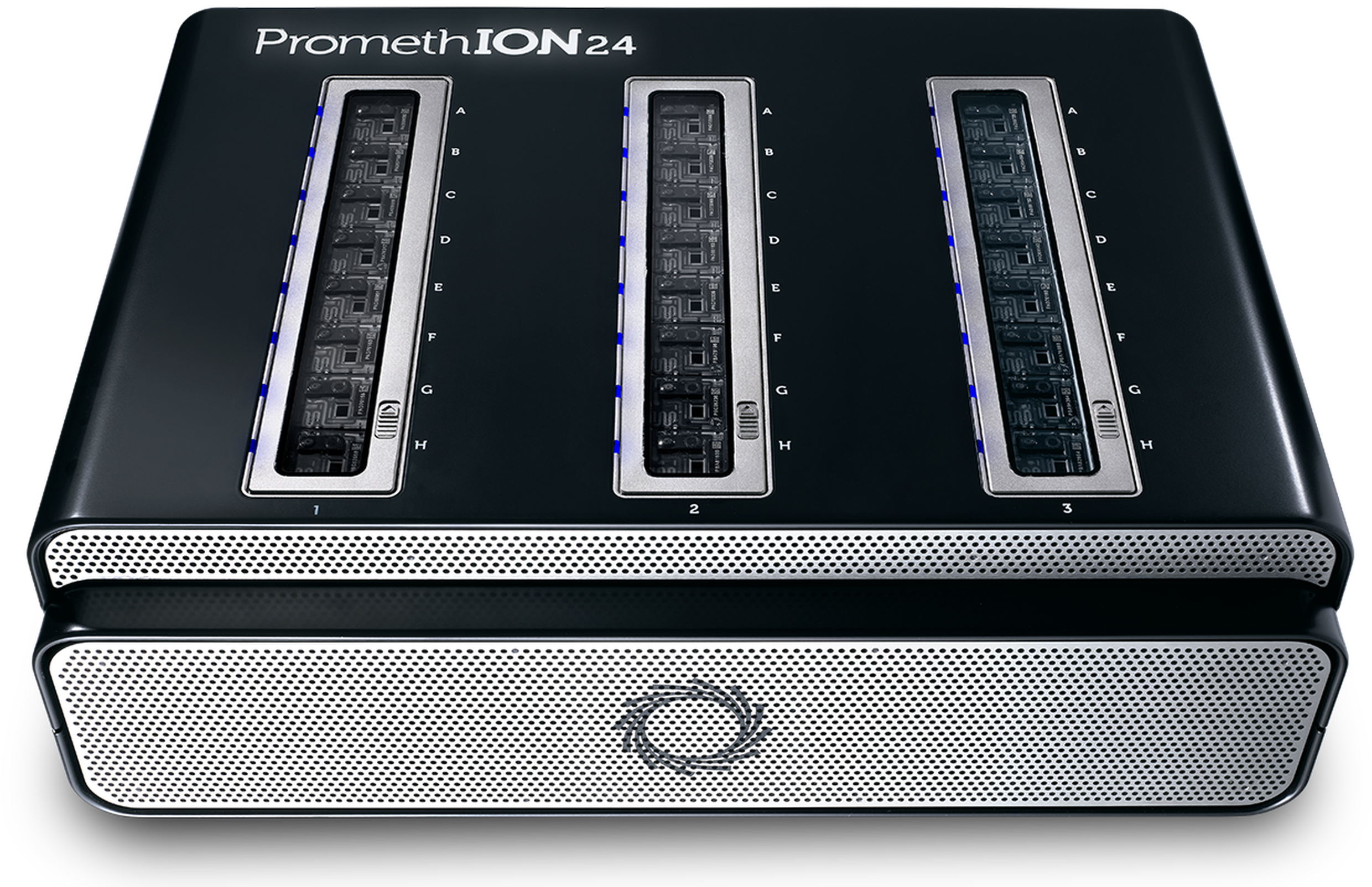

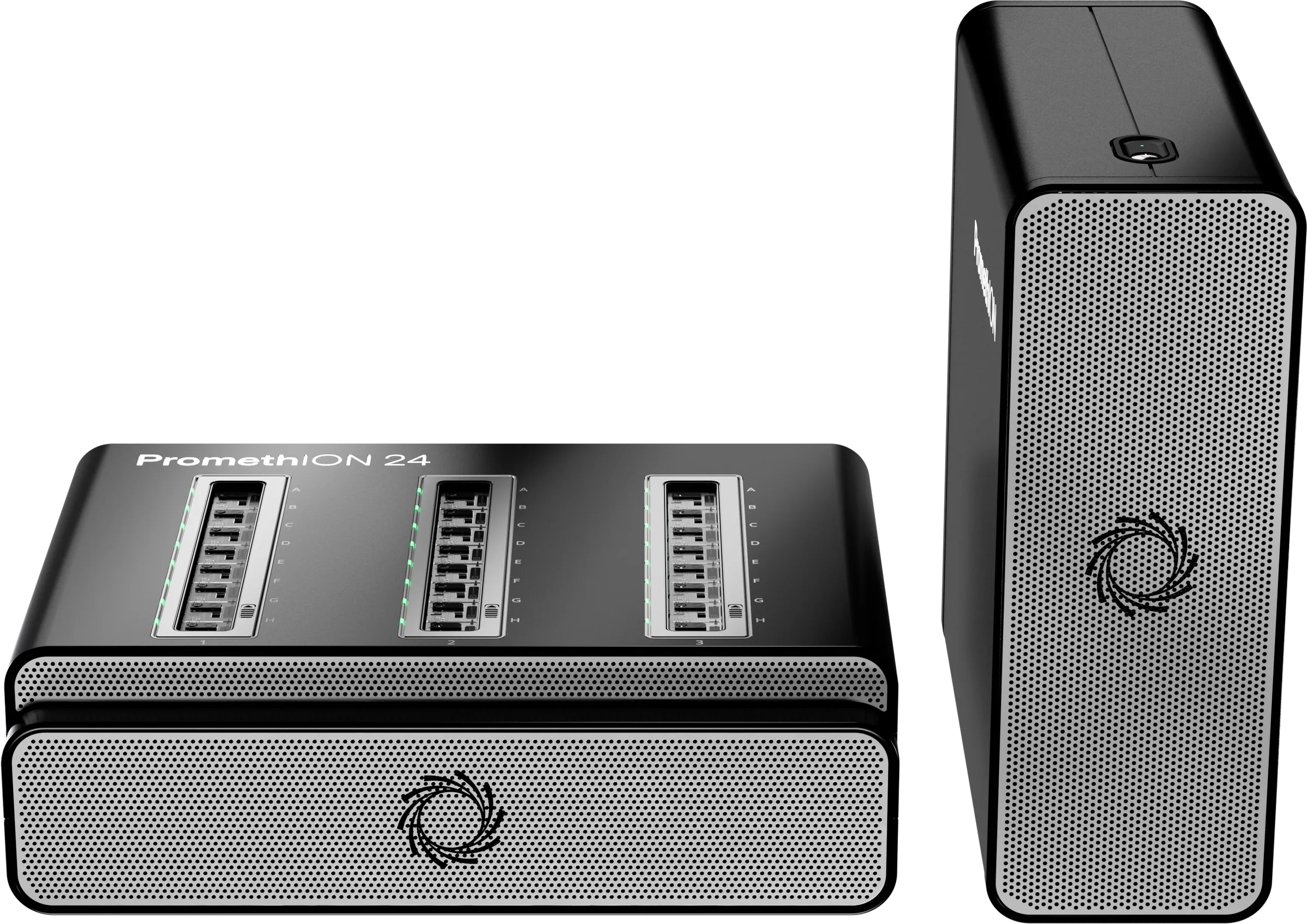

PromethION 24
Terabases of data

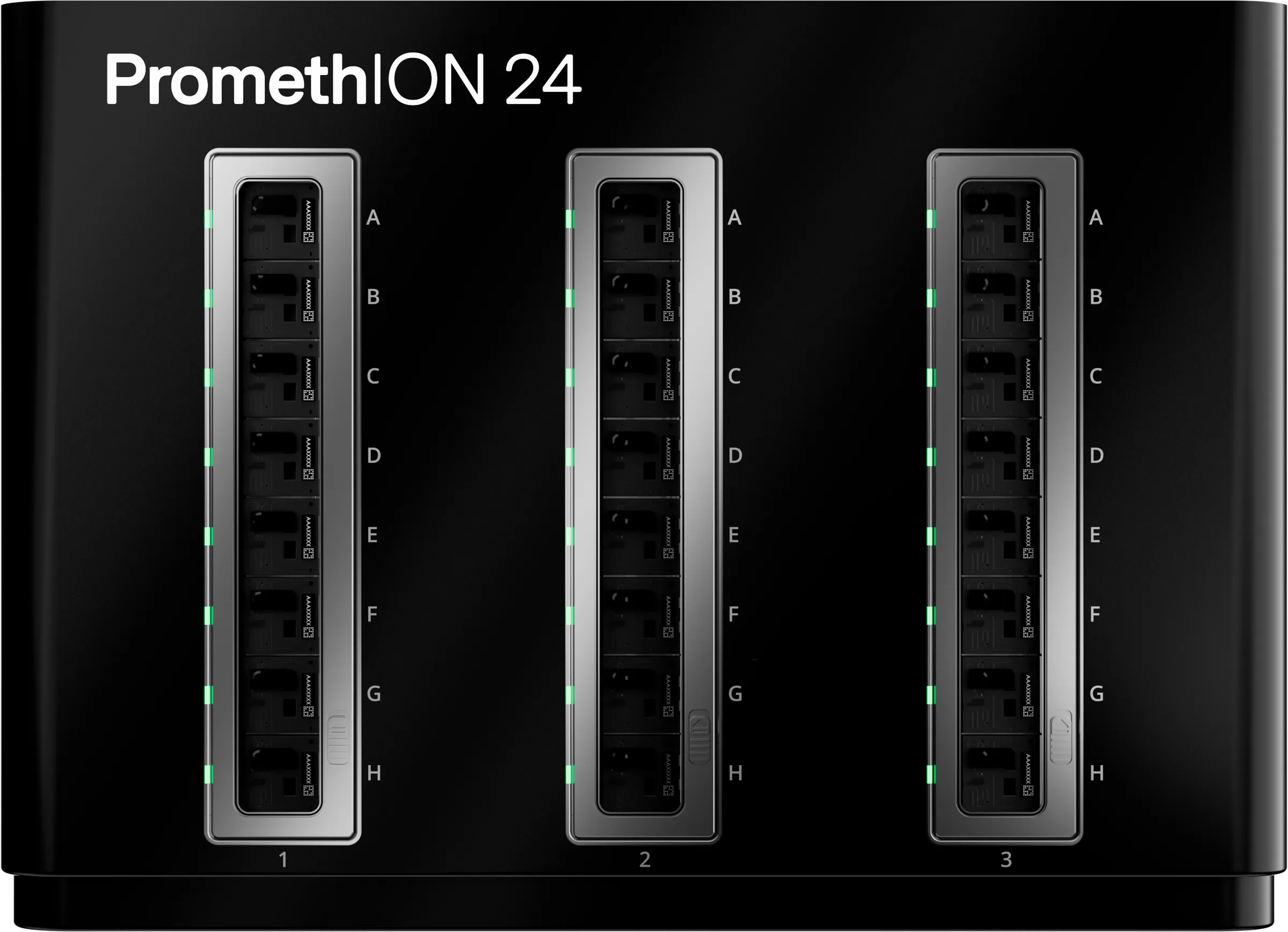

1 - 24 flow cells
Flexible, on-demand sequencing.
High-performance compute
Analyse data in real time with 4 NVIDIA A-Series GPUs.
Scalable and high-throughput
Sequence up to terabases of data with every run.
Overview
Flexible DNA/RNA high-throughput nanopore sequencers offering the flexibility of 24 independently controllable, high-output flow cells and leveraging state-of-the-art algorithms and GPU technology, PromethION 24 (P24) provides single or multiple users with on-demand access to terabases of sequencing data.
)
Specifications

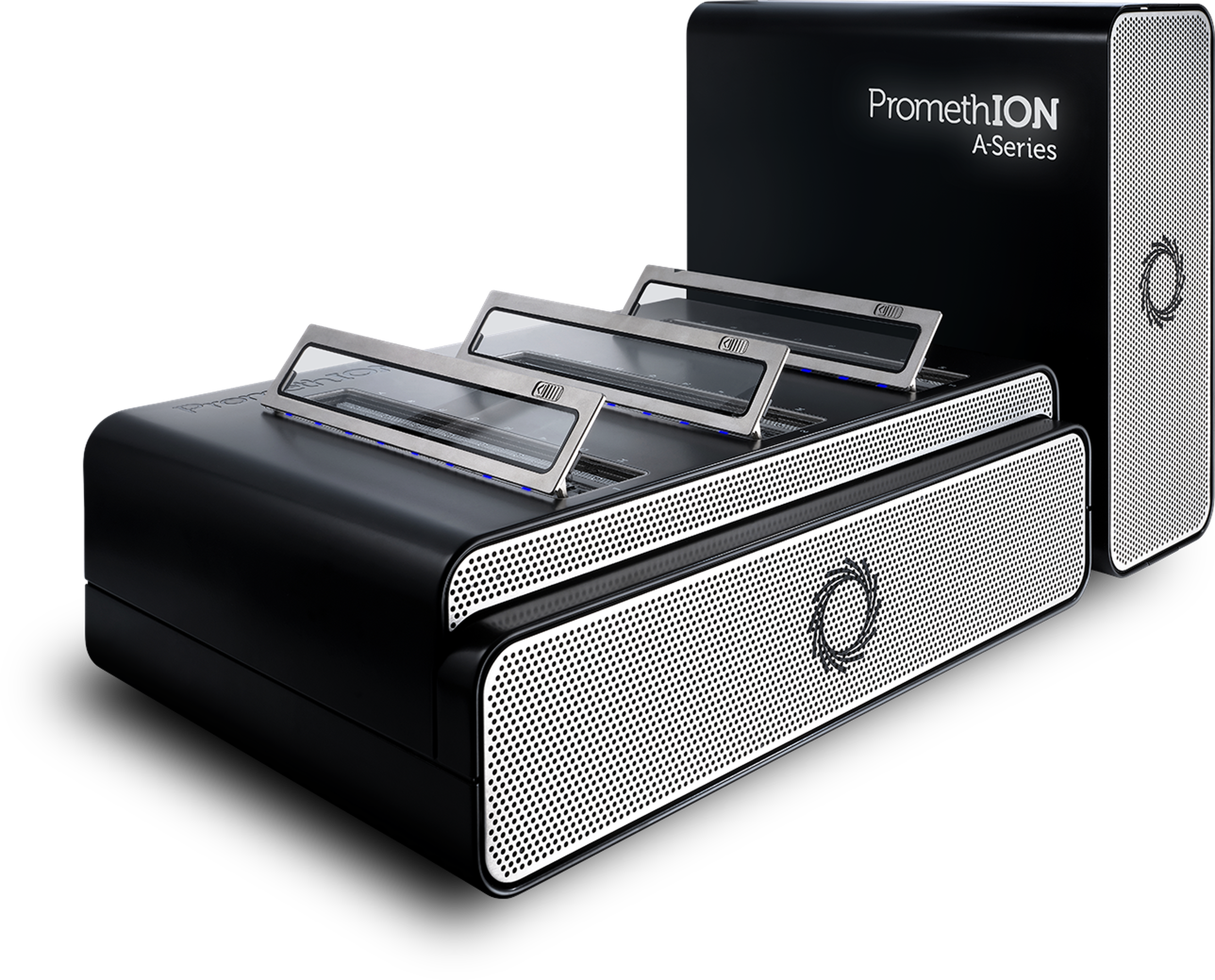

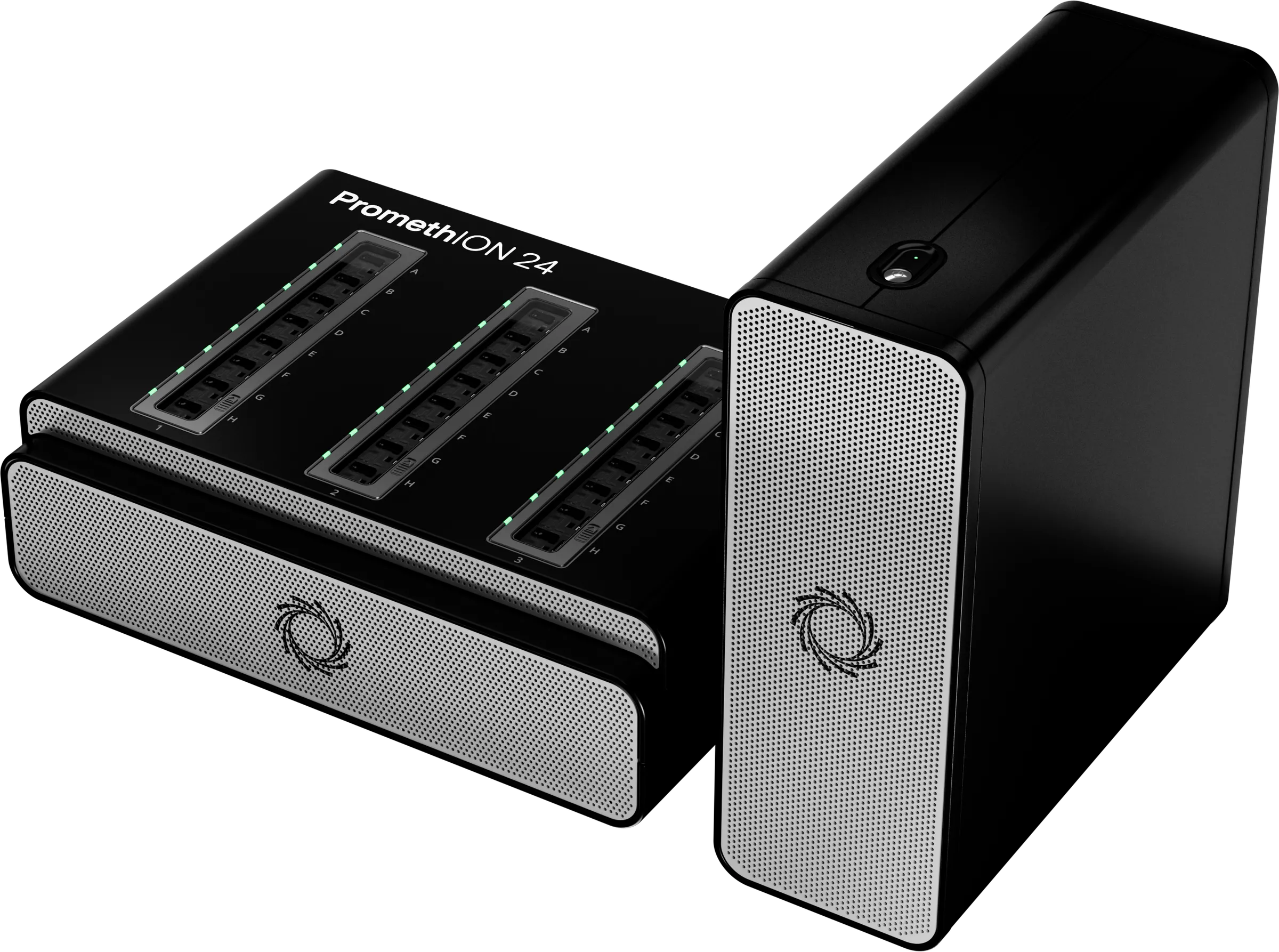

The PromethION 24 operates up to 24 flow cells at once and is deployed with a powerful PromethION A Series tower, utilising 4 NVIDIA A Series CPUS for real-time data handling.
)
Read length
Nanopores read the length of DNA or RNA presented to them — from short to ultra-long (longest >4 Mb).
Dimensions
Compact benchtop device with compute module.
Sequencing module:
- Size: W 590 mm, H 190 mm, D 430 mm
- Weight: 28 kg
Compute module:
- Size: W 178 mm, H 440 mm, D 470 mm
Weight: 25 kg
Suitable applications
- Larger genomes or projects
- Population-scale sequencing
- Highly multiplexed small genomes or targeted regions
- Whole transcriptomes (direct RNA or cDNA)
On-demand
Sequence what you need, when you need it.
- Run flow cells individually or together — no more sample batching
- Each flow cell has approximately six times the sequencing capacity of a MinION Flow Cell
- Run multiple DNA or RNA experiments at once
- Barcode for even more samples
- Suitable for high-throughput and service labs
Accessible
- Small footprint — suitable for any lab
- Easy installation with comprehensive support
High-performance compute
Sequencing and analysis in one powerful device.
- Latest generation CPU
- 4 NVIDIA A-Series GPUs
- 60 TB SSD data storage
- 512 GB RAM
- Preloaded with Ubuntu OS and MinKNOW
)
Which PromethION device is right for me?
Not sure which PromethION device you need? Compare the number of flow cells you can run on a PromethION 2 device or a PromethION 24 device, each year. Read more about our P2 device.
Flow cells run for 72 hours, two full device runs per week.
Talk to us
If you have any questions about our products or services, chat directly with a member of our sales team.
Book a sales call
To book a call with one of our sales team, please click below.
Publications featuring PromethION 24
)
Capturing genomic diversity in the human pangenome with long reads
The team used the PromethION sequencing device from Oxford Nanopore Technologies to generate ultra-long reads from each of the 47 samples. For the 29 samples sequenced entirely by the consortium...
)
Scalability and accessibility for large-cohort dementia research
Using nanopore reads to support large-scale studies of dementia, the successful application of this approach in characterizing complex genomic regions associated with Alzheimer’s disease...
)
Understanding the drivers of oncogenesis
Kieran O’Neill introduced the Personalized OncoGenomics (POG) Program, a 12-year research trial sequencing over 1,000 genomes and transcriptomes from participants with advanced cancer.
Product documentation
PromethION P24 device specs
PromethION 24 Technical Specification
Safety and regulatory information
PromethION IT Requirements
This checklist represents the minimal requirements for installing the PromethION in your institution.
PromethION Quick Start Guide
