Ligation sequencing V14 — Human cfDNA singleplex (SQK-LSK114)

Oxford Nanopore Technologies
Document type icon

PromethION: Protocol

Ligation sequencing V14 — Human cfDNA singleplex (SQK-LSK114) V CFS_9207_v114_revC_15May2024

Method outlining sample extraction, library preparation, sequencing and data analysis. This protocol:

  • uses human cfDNA
  • is for singleplex sequencing
  • is compatible with R10.4.1 flow cells

For Research Use Only

FOR RESEARCH USE ONLY

Overview

Method outlining sample extraction, library preparation, sequencing and data analysis. This protocol:

  • uses human cfDNA
  • is for singleplex sequencing
  • is compatible with R10.4.1 flow cells

For Research Use Only

Document version: CFS_9207_v114_revC_15May2024

1. Overview of the protocol

Introduction to the singleplex human cfDNA sequencing protocol

This protocol describes how to carry preparation and sequencing of a human cfDNA sample using the Ligation Sequencing Kit V14 (SQK-LSK114). Typically, we obtain ~50 Gb of aligned data (15x coverage) for human cfDNA samples processed with this protocol.

Prior to library preparation, the sample extraction is carried out using the QIAGEN QIAamp MinElute ccfDNA Midi Kit and following our Human blood cell-free DNA (cfDNA) extraction for singleplex sequencing method.

Note: We recommend that blood samples are processed while fresh, as we have observed potential gDNA contamination arising from blood that has been stored in certain types of collection tubes.

For more information on the development and performance of this method, please refer to our Updated method for cell-free DNA (cfDNA) methylation profiling know-how document. An additional know-how document is also available for the optimisation of library preparation for longer cell-free DNA (cfDNA).

Steps in the workflow

Prepare for your experiment

You will need to:

  • Extract your DNA, and check its length, quantity and purity. The quality checks performed during the protocol are essential in ensuring experimental success.
  • Ensure you have your sequencing kit, the correct equipment and third-party reagents
  • Download the software for acquiring and analysing your data
  • Check your flow cell to ensure it has enough pores for a good sequencing run

Sample preparation

Using the outlined extraction method, extract the cfDNA from your human blood sample, and quantify the DNA:


Library preparation

The table below is an overview of the steps required in the library preparation, including timings and optional stopping points.

Library preparation Process Time Stop option
DNA repair and end-prep Repair the cfDNA and prepare the DNA ends for adapter attachment 125 minutes 4°C overnight
Adapter ligation and clean-up Attach the sequencing adapters to the DNA ends 20 minutes 4°C short-term storage or for repeated use, such as re-loading your flow cell
-80°C for single-use, long-term storage.
We strongly recommend sequencing your library as soon as it is adapted.
Priming and loading the flow cell Prime the flow cell and load the prepared library for sequencing 5 minutes

Sequencing and analysis

You will need to:

  • Start a sequencing run using the MinKNOW software which will collect raw data from the device and basecall reads.
  • (Optional) Raw sequencing data can be basecalled and aligned to a reference using dorado.
  • (Optional) Start the EPI2ME software and select a bioinformatics workflow to analyse your data. Alternatively, external tools can be used to further analyse and explore your data.
IMPORTANT

Compatibility of this protocol

This protocol should only be used in combination with:

2. Equipment and consumables

Materials
  • (FOR EXTRACTION) 10 ml of human blood in EDTA K2 vacuum tube, or 3–5 ml of plasma
  • (FOR LIBRARY PREPARATION) 15–30 ng extracted human cfDNA per sample
  • Ligation Sequencing Kit V14 (SQK-LSK114)
Consumables
  • PromethION Flow Cell
  • QIAamp MinElute ccfDNA Midi Kit (QIAGEN, 55284)
  • Agencourt AMPure XP beads (Beckman Coulter™, A63881)
  • Qubit dsDNA HS Assay Kit (Invitrogen, Q32851)
  • NEBNext FFPE DNA Repair v2 Module (NEB, E7360)
  • NEBNext Ultra II End repair/dA-tailing Module (NEB, E7546)
  • NEBNext Quick Ligation Module (NEB, E6056)
  • Ethanol, 100% (e.g. Fisher, 16606002)
  • Isopropanol
  • Freshly prepared 80% ethanol in nuclease-free water
  • Nuclease-free water (e.g. ThermoFisher, AM9937)
  • Qubit™ Assay Tubes (Invitrogen, Q32856)
  • 5 ml Eppendorf DNA LoBind tubes
  • 15 ml Falcon tubes
  • 1.5 ml Eppendorf DNA LoBind tubes
  • 0.2 ml thin-walled PCR tubes
Equipment
  • PromethION device
  • PromethION Flow Cell Light Shield
  • Centrifuge with capacity for 5 ml and 15 ml tubes, and a swing out and fixed angle rotors
  • Hula mixer (gentle rotator mixer)
  • Magnetic rack for 15 ml tubes
  • Magnetic rack, suitable for 1.5 ml Eppendorf tubes
  • Thermomixer, or other shaker for microcentrifuge tubes, with capacity to heat at 56°C
  • Microfuge
  • Vortex mixer
  • Thermal cycler
  • P1000 pipette and tips
  • P200 pipette and tips
  • P100 pipette and tips
  • P20 pipette and tips
  • P10 pipette and tips
  • P2 pipette and tips
  • Ice bucket with ice
  • Timer
  • Qubit fluorometer (or equivalent for QC check)
IMPORTANT

The above list of materials, consumables, and equipment is for the extraction method in the sample preparation section, as well as the library preparation section of the protocol. If you have pre-extracted sample(s), you will only require the materials for the library preparation section of this protocol.

For this protocol, the following inputs are required:

Input requirements per sample for the extraction method:

  • 10 ml of fresh human blood in EDTA K2 vacuum tube, or 3–5 ml of plasma

Note: We recommend that blood samples are processed while fresh, as we have observed potential gDNA contamination arising from blood that has been stored in certain types of collection tubes.


Input requirements per sample for the library preparation:

  • 15–30 ng extracted human cfDNA

Input DNA

How to QC your input DNA

It is important that the input DNA meets the quantity and quality requirements. Using too little or too much DNA, or DNA of poor quality (e.g. highly fragmented or containing RNA or chemical contaminants) can affect your library preparation.

For instructions on how to perform quality control of your DNA sample, please read the Input DNA/RNA QC protocol.

Chemical contaminants

Depending on how the DNA is extracted from the raw sample, certain chemical contaminants may remain in the purified DNA, which can affect library preparation efficiency and sequencing quality. Read more about contaminants on the Contaminants page of the Community.

Third-party reagents

We have validated and recommend the use of all the third-party reagents used in this protocol. Alternatives have not been tested by Oxford Nanopore Technologies.

For all third-party reagents, we recommend following the manufacturer's instructions to prepare the reagents for use.

Check your flow cell

We highly recommend that you check the number of pores in your flow cell prior to starting a sequencing experiment. This should be done within 12 weeks of purchasing for MinION/GridION/PromethION or within four weeks of purchasing Flongle Flow Cells. Oxford Nanopore Technologies will replace any flow cell with fewer than the number of pores in the table below, when the result is reported within two days of performing the flow cell check, and when the storage recommendations have been followed. To do the flow cell check, please follow the instructions in the Flow Cell Check document.

Flow cell Minimum number of active pores covered by warranty
Flongle Flow Cell 50
MinION/GridION Flow Cell 800
PromethION Flow Cell 5000
IMPORTANT

We strongly recommend using the Ligation Buffer (LNB) supplied in the Ligation Sequencing Kit V14 rather than any third-party ligase buffers to ensure high ligation efficiency of the Ligation Adapter (LA).

IMPORTANT

Ligation Adapter (LA) included in this kit and protocol is not interchangeable with other sequencing adapters.

Ligation Sequencing Kit V14 (SQK-LSK114) contents

Note: We are in the process of reformatting our kits with single-use tubes into a bottle format.

Single-use tubes format: SQK-LSK114 v2

Bottle format: SQK-LSK114 v3

Note: This Product Contains AMPure XP Reagent Manufactured by Beckman Coulter, Inc. and can be stored at -20°C with the kit without detriment to reagent stability.

Note: The DNA Control Sample (DCS) is a 3.6 kb standard amplicon mapping the 3' end of the Lambda genome.

3. Sample extraction method for singleplex sequencing of human cfDNA

Materials
  • 10 ml of fresh human blood in EDTA K2 vacuum tube, or 3-5 ml of plasma
Consumables
  • QIAamp MinElute ccfDNA Midi Kit (QIAGEN, 55284)
  • Qubit dsDNA HS Assay Kit (Invitrogen, Q32851)
  • Ethanol, 100% (e.g. Fisher, 16606002)
  • Isopropanol
  • Freshly prepared 80% ethanol in nuclease-free water
  • Nuclease-free water (e.g. ThermoFisher, cat # AM9937)
  • Qubit™ Assay Tubes (Invitrogen, Q32856)
  • 5 ml Eppendorf DNA LoBind tubes
  • 15 ml Falcon tubes
  • 0.2 ml thin-walled PCR tubes
  • 1.5 ml Eppendorf DNA LoBind tubes
Equipment
  • Centrifuge with capacity for 5 ml and 15 ml tubes, and a swing out and fixed angle rotors
  • Microfuge
  • Hula mixer (gentle rotator mixer)
  • Magnetic rack for 15 ml tubes
  • Magnetic rack
  • Vortex mixer
  • P1000 pipette and tips
  • P100 pipette and tips
  • Thermal cycler
  • Ice bucket with ice
  • Qubit fluorometer (or equivalent for QC check)
Optional equipment
  • Agilent Femto Pulse System (or equivalent for read length QC)

Optimised extraction: Human blood cell-free DNA (cfDNA) extraction for singleplex sequencing

This extraction method can also be found in the Extraction Protocols tab in the Documentation space on the Nanopore Community: Human blood cell-free DNA (cfDNA) extraction for singleplex sequencing.

These instructions describe a method to extract cell-free DNA (cfDNA) from human blood samples collected in EDTA K2 vacuum tubes (step 1), or human plasma (step 3). Once samples have undergone the necessary centrifugation steps, the extraction is performed using the QIAGEN QIAamp MinElute ccfDNA Midi Kit.

Note: The yield, DIN and sequencing read length of extracted DNA may vary depending on initial sample quality. Please ensure you are following the correct method and using high-quality sample inputs.

OPTIONAL ACTION

Alternatively, if you have previously extracted and stored your cfDNA sample(s), this can be used directly in the Library preparation section of this protocol.

IMPORTANT

We recommend that blood samples are processed while fresh, as we have observed potential gDNA contamination arising from blood that has been stored in certain types of collection tubes.

Preparation of plasma from fresh blood

Centrifuge 10 ml of fresh blood (overnight chilled delivery) in the EDTA K2 vacuum tube at 1,900 x g for 10 minutes at 4°C in a swing out rotor centrifuge.

Pipette and transfer the supernatant (this is the plasma fraction) to a fresh 5 ml DNA LoBind Eppendorf tube.

The volume should be around 3.5–4 ml.

To remove residual cells from the plasma, centrifuge the plasma at 16,000 x g for 10 minutes (or 6,000 x g for 30 minutes depending on the spin capacity of the centrifuge) at 4°C, in a fixed angle rotor.

IMPORTANT

It is important to remove residual cells from the sample when the blood/plasma is still fresh (from an overnight chilled delivery). Failing to do so will result in increased amounts of gDNA contamination in the sequencing library.

Aspirate the supernatant and transfer it to a fresh 15 ml tube.

Purification of cfDNA from 3–5 ml serum or plasma Using the QIAamp MinElute ccfDNA Midi Kit

Before starting the extraction:

  • Prepare a shaker for microcentrifuge tubes at room temperature for use in step 14.
  • Preheat a second shaker at 56°C for use in step 26. (Alternatively, equilibrate the first shaker to 56°C after step 14).
  • Resuspend Magnetic Bead Suspension (from the QIAGEN QIAamp MinElute ccfDNA Midi Kit) by pulse-vortexing for 1 min.
    Note: Do not let the suspension settle for more than 2 min before use. Pipette from the centre of the suspension.

Prepare the buffers for extraction:

  • Add 8 ml isopropanol (100%) to 12 ml Buffer ACB concentrate to obtain 20 ml Buffer ACB. Mix well after adding isopropanol.
  • Add 30 ml ethanol (96–100%) to 13 ml Buffer ACW2 concentrate to obtain 43 ml Buffer ACW2. Mix well after adding ethanol.

Mix the following components according to the instructions below in a 15 ml tube:

Component Volume for 3 ml plasma (µl) Volume for 4 ml plasma (µl) Volume for 5 ml plasma (µl)
Plasma 3,000 4,000 5,000
Magnetic Bead Suspension 90 120 150
Proteinase K 165 220 275
Bead Binding Buffer 450 600 750
Total volume 3,705 4,940 6,175

Incubate the reaction for 10 min at room temperature while shaking (at a slow speed) end-over-end.

Spin the tube down briefly (30 seconds at 200 x g) to remove any solution in the cap.

Place the tube containing bead solution into a magnetic rack for 15 ml tubes. Let the tube stand for at least 1 min, until the solution is clear.

Remove and discard supernatant.

Remove the tube from the magnetic rack and add 200 µl of Bead Elution Buffer to the bead pellet. Vortex to resuspend beads, and pipette up and down to mix and rinse residual beads from the tube wall.

Transfer the full volume of mixture (including the beads) into a Bead Elution Tube.

Incubate for 5 min on a shaker for microcentrifuge tubes at room temperature and 300 rpm.

Note: If the same shaker for microcentrifuge tubes is to be used in step 26, remove the tubes after the room temperature incubation and equilibrate the shaker to 56°C

Place the Bead Elution Tube containing the bead solution into a magnetic rack for 2 ml tubes. Let the tube stand for at least 1 min, until the solution is clear.

Transfer the supernatant into a new Bead Elution tube. Discard the bead pellet.

Avoid transferring any magnetic beads in this step. Carryover may result in reduced cfDNA yield.

Add 300 µl Buffer ACB to the Bead Elution tube containing the supernatant, and vortex to mix. Briefly centrifuge the tube to remove drops from inside the lid.

Pipet the supernatant–Buffer ACB mixture from the previous step into a QIAamp UCP MinElute column.

Centrifuge for 1 min at 6,000 x g.

Place the QIAamp UCP MinElute column into a clean 2 ml collection tube, and discard the flow-through.

Add 500 µl Buffer ACW2 to the QIAamp UCP MinElute column.

Centrifuge for 1 min at 6,000 x g.

Place the QIAamp UCP MinElute column into a clean 2 ml collection tube, and discard the flow-through.

Centrifuge the QIAamp UCP MinElute column at 20,000 x g for 3 min.

Place the QIAamp UCP MinElute column into a new 1.5 ml elution tube and discard the 2 ml collection tube.

Open the lid of the tube and incubate the assembly in a shaker for microcentrifuge tubes at 56°C for 3 min to dry the membrane completely.

Carefully pipet 50 µl of ultra-clean water into the centre of the membrane. Close the lid and incubate at room temperature for 1 min.

Centrifuge at 20,000 x g for 1 min to elute the DNA.

To maximise yield from the elution: Place the QIAamp UCP MinElute column in a clean 1.5 ml elution tube. Aspirate the eluate from the previous step and reload it onto the centre of the membrane. Close the lid and incubate 1 min at room temperature.

Centrifuge at 20,000 x g for 1 min to elute the DNA.

Quantify 1 µl of eluted sample using a Qubit fluorometer.

From 3.5–4 ml of plasma, you can expect a yield of between 15–30 ng cfDNA.

OPTIONAL ACTION

We recommend that the fragment length profiles of extracted cfDNA samples are analysed using a Femto Pulse (Agilent), or equivalent:

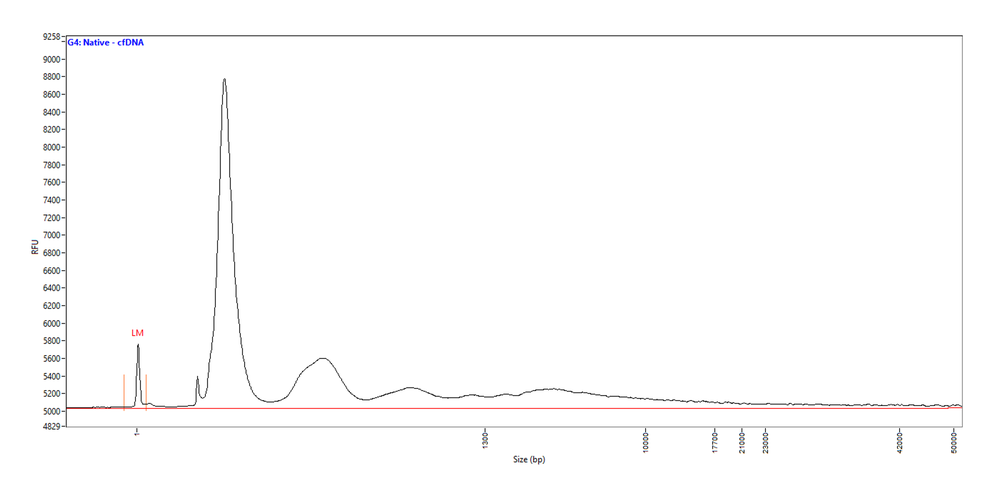

Frag length femtopulse cfDNA singleplex extract

Fragment length profile of extracted cfDNA, run on a Femto Pule (Agilent). This example shows the characteristic nucleosome peaks with minimal gDNA contamination.

END OF STEP

Take forward 15–30 ng of extracted human cfDNA to the library preparation stage of the protcol.

4. DNA repair and end-prep

Materials
  • 15–30 ng extracted human cfDNA per sample
  • AMPure XP Beads (AXP)
Consumables
  • NEBNext FFPE DNA Repair v2 Module (NEB, E7360)
  • NEBNext® Ultra II End Repair / dA-tailing Module (NEB, E7546)
  • Qubit dsDNA HS Assay Kit (Invitrogen, Q32851)
  • Nuclease-free water (e.g. ThermoFisher, AM9937)
  • Freshly prepared 80% ethanol in nuclease-free water
  • Qubit™ Assay Tubes (Invitrogen, Q32856)
  • 0.2 ml thin-walled PCR tubes
  • 1.5 ml Eppendorf DNA LoBind tubes
Equipment
  • P1000 pipette and tips
  • P100 pipette and tips
  • P10 pipette and tips
  • Microfuge
  • Thermal cycler
  • Hula mixer (gentle rotator mixer)
  • Magnetic rack
  • Ice bucket with ice
Optional equipment
  • Qubit fluorometer (or equivalent for QC check)

Prepare the NEBNext FFPE DNA Repair Mix, the NEBNext FFPE DNA Repair Buffer v2 and NEBNext Ultra II End Repair / dA-tailing Module reagents in accordance with manufacturer’s instructions, and place on ice.

For optimal performance, NEB recommend the following:

  1. Thaw all reagents on ice.

  2. Flick and/or invert the reagent tubes to ensure they are well mixed.
    Note: Do not vortex the FFPE DNA Repair Mix, NEB Thermoliable Proteinase K or Ultra II End Prep Enzyme Mix.

  3. Always spin down tubes before opening for the first time each day.

  4. The FFPE DNA Repair Buffer v2 may have a little precipitate. Allow the mixture to come to room temperature and pipette the buffer up and down several times to break up the precipitate, followed by vortexing the tube for 30 seconds to solubilise any precipitate.
    Note: It is important the buffers are mixed well by vortexing.

  5. The FFPE DNA Repair Buffer v2 may have a yellow tinge and is fine to use if yellow.

Prepare the DNA in nuclease-free water:

  1. Ensure you have 15–30 ng of extracted cfDNA from the sample extraction, and transfer this into a 0.2 ml thin-walled PCR tube.

  2. Adjust the volume to 46 μl with nuclease-free water.

  3. Mix thoroughly by pipetting up and down, or by flicking the tube.

  4. Spin down briefly in a microfuge.

In the 0.2 ml thin-walled PCR tube containing your cfDNA, mix the following:

Reagent Volume
cfDNA from the previous step 46 µl
NEBNext FFPE DNA Repair Buffer v2 7 µl
NEBNext FFPE DNA Repair Mix v2 2 µl
Total 55 µl

Thoroughly mix the reaction by gently pipetting and briefly spinning down.

Using a thermal cycler with a heated lid set to 50°C, incubate the reaction at 37°C for 15 minutes and hold at 4°C.

Remove the reaction from the thermal cycler and place the tube on ice.

Keeping the tube on ice, add 2 µl of NEBNext Thermolabile Proteinase K directly to the repaired reaction mixture.

Mix by pipetting 10 times, followed by spinning down quickly to collect all liquid from the sides of the tube.

Using a thermal cycler with a heated lid set to 75°C, incubate at 37°C for 15 minutes and 65°C for 5 minutes, then hold at 4°C.

Remove the reaction from the thermal cycler and place the tube on ice.

Keeping the tube on ice, add 3 µl of NEBNext Ultra II End Prep Enzyme Mix directly to the reaction mixture for a total volume of 60 µl.

Mix by pipetting 10 times, followed by spinning down quickly to collect all liquid from the sides of the tube.

Using a thermal cycler with a heated lid set to 75°C, incubate at 20°C for 30 minutes and 65°C for 30 minutes, then hold at 4°C.

Resuspend the AMPure XP Beads (AXP) by vortexing.

Transfer the DNA sample to a clean 1.5 ml Eppendorf DNA LoBind tube.

Add 180 µl of resuspended the AMPure XP Beads (AXP) to the end-prep reaction and mix by flicking the tube.

Incubate on a Hula mixer (rotator mixer) for 5 minutes at room temperature.

Prepare 1 ml of fresh 80% ethanol in nuclease-free water.

Spin down the sample and pellet on a magnet until supernatant is clear and colourless. Keep the tube on the magnet, and pipette off the supernatant.

Keep the tube on the magnet and wash the beads with 300 µl of freshly prepared 80% ethanol without disturbing the pellet. Remove the ethanol using a pipette and discard.

Repeat the previous step.

Spin down and place the tube back on the magnet. Pipette off any residual ethanol. Allow to dry for ~30 seconds, but do not dry the pellet to the point of cracking.

Remove the tube from the magnetic rack and resuspend the pellet in 61 µl nuclease-free water. Incubate for 2 minutes at room temperature.

Pellet the beads on a magnet until the eluate is clear and colourless, for at least 1 minute.

Remove and retain 61 µl of eluate into a clean 1.5 ml Eppendorf DNA LoBind tube.

CHECKPOINT

Quantify 1 µl of eluted sample using a Qubit fluorometer.

Note: You should expect to recover approximately 75% of your input mass. For example, from 30 ng of cfDNA, a yield of approximately 20–25 ng is expected.

END OF STEP

Take forward the repaired and end-prepped cfDNA into the adapter ligation step. However, at this point it is also possible to store the sample at 4°C overnight.

5. Adapter ligation and clean-up

Materials
  • Ligation Adapter (LA)
  • Ligation Buffer (LNB)
  • Short Fragment Buffer (SFB)
  • AMPure XP Beads (AXP)
  • Elution Buffer (EB)
Consumables
  • Qubit dsDNA HS Assay Kit (Invitrogen, Q32851)
  • NEBNext Quick Ligation Module (NEB, E6056)
  • 1.5 ml Eppendorf DNA LoBind tubes
  • Qubit™ Assay Tubes (Invitrogen, Q32856)
Equipment
  • Magnetic rack
  • Microfuge
  • Vortex mixer
  • P1000 pipette and tips
  • P100 pipette and tips
  • P20 pipette and tips
  • P10 pipette and tips
  • Qubit fluorometer (or equivalent for QC check)
IMPORTANT

Although third-party ligase products may be supplied with their own buffer, the ligation efficiency of the Ligation Adapter (LA) is higher when using the Ligation Buffer (LNB) supplied in the Ligation Sequencing Kit.

Spin down the Ligation Adapter (LA) and Quick T4 Ligase, and place on ice.

Thaw Ligation Buffer (LNB) at room temperature, spin down and mix by pipetting. Due to viscosity, vortexing this buffer is ineffective. Place on ice immediately after thawing and mixing.

Thaw the Elution Buffer (EB) at room temperature and mix by vortexing. Then spin down and place on ice.

Thaw the Short Fragment Buffer (SFB) at room temperature and mix by vortexing. Then spin down and place on ice.

In a 1.5 ml Eppendorf DNA LoBind tube, mix in the following order:

Between each addition, pipette mix 10-20 times.

Reagent Volume
DNA sample from the previous step 60 µl
Ligation Adapter (LA) 5 µl
Ligation Buffer (LNB) 25 µl
NEB Quick T4 DNA Ligase 10 µl
Total 100 µl

Thoroughly mix the reaction by gently pipetting and briefly spinning down.

Incubate the reaction for 10 minutes at room temperature.

Resuspend the AMPure XP Beads (AXP) by vortexing.

Add 120 µl of resuspended AMPure XP Beads (AXP) to the reaction and mix by flicking the tube.

Incubate on a Hula mixer (rotator mixer) for 5 minutes at room temperature.

Spin down the sample and pellet on a magnet. Keep the tube on the magnet, and pipette off the supernatant when clear and colourless.

Wash the beads by adding 250 μl of Short Fragment Buffer (SFB). Flick the beads to resuspend, spin down, then return the tube to the magnetic rack and allow the beads to pellet. Remove the supernatant using a pipette and discard.

Note: Take care when removing the supernatant, the viscosity of the buffer can contribute to loss of beads from the pellet.

Repeat the previous step.

Spin down and place the tube back on the magnet. Pipette off any residual supernatant. Allow to dry for ~30 seconds, but do not dry the pellet to the point of cracking.

Remove the tube from the magnetic rack and resuspend the pellet in 33 µl Elution Buffer (EB). Spin down and incubate for 10 minutes at room temperature.

Pellet the beads on a magnet until the eluate is clear and colourless, for at least 1 minute.

Remove and retain 33 µl of eluate containing the DNA library into a clean 1.5 ml Eppendorf DNA LoBind tube.

Dispose of the pelleted beads

CHECKPOINT

Quantify 1 µl of eluted sample using a Qubit fluorometer.

Note: You should expect to recover approximately 35-50% of input mass. For example, from 30 ng cfDNA a yield of 10-15 ng of adapter ligated library is expected.

END OF STEP

The prepared library is used for loading into the flow cell. Store the library on ice or at 4°C until ready to load.

TIP

Library storage recommendations

We recommend storing libraries in Eppendorf DNA LoBind tubes at 4°C for short-term storage or repeated use, for example, re-loading flow cells between washes. For single use and long-term storage of more than 3 months, we recommend storing libraries at -80°C in Eppendorf DNA LoBind tubes.

6. Priming and loading the PromethION Flow Cell

Materials
  • Sequencing Buffer (SB)
  • Library Beads (LIB)
  • Flow Cell Tether (FCT)
  • Flow Cell Flush (FCF)
Consumables
  • PromethION Flow Cell
  • 1.5 ml Eppendorf DNA LoBind tubes
Equipment
  • PromethION 2 Solo device
  • PromethION sequencing device
  • PromethION Flow Cell Light Shield
  • P1000 pipette and tips
  • P200 pipette and tips
  • P20 pipette and tips
IMPORTANT

This method is only compatible with R10.4.1 flow cells (FLO-PRO114M).

Thaw the Sequencing Buffer (SB), Library Beads (LIB), Flow Cell Tether (FCT) and Flow Cell Flush (FCF) at room temperature before mixing by vortexing. Then spin down and store on ice.

To prepare the flow cell priming mix, combine Flow Cell Tether (FCT) and Flow Cell Flush (FCF), as directed below. Mix by vortexing at room temperature.

Note: We are in the process of reformatting our kits with single-use tubes into a bottle format. Please follow the instructions for your kit format.

Single-use tubes format: Add 30 µl Flow Cell Tether (FCT) directly to a tube of Flow Cell Flush (FCF).

Bottle format: In a clean suitable tube for the number of flow cells, combine the following reagents:

Reagent Volume per flow cell
Flow Cell Flush (FCF) 1,170 µl
Flow Cell Tether (FCT) 30 µl
Total volume 1,200 µl
IMPORTANT

After taking flow cells out of the fridge, wait 20 minutes before inserting the flow cell into the PromethION for the flow cell to come to room temperature. Condensation can form on the flow cell in humid environments. Inspect the gold connector pins on the top and underside of the flow cell for condensation and wipe off with a lint-free wipe if any is observed. Ensure the heat pad (black pad) is present on the underside of the flow cell.

For PromethION 2 Solo, load the flow cell(s) as follows:

  1. Place the flow cell flat on the metal plate.

  2. Slide the flow cell into the docking port until the gold pins or green board cannot be seen.

J2068 FC-into-P2-animation V5

For the PromethION 24/48, load the flow cell(s) into the docking ports:

  1. Line up the flow cell with the connector horizontally and vertically before smoothly inserting into position.
  2. Press down firmly onto the flow cell and ensure the latch engages and clicks into place.

Step 1a V3

Step 1B

IMPORTANT

Insertion of the flow cells at the wrong angle can cause damage to the pins on the PromethION and affect your sequencing results. If you find the pins on a PromethION position are damaged, please contact support@nanoporetech.com for assistance.

Screenshot 2021-04-08 at 12.08.37

Slide the inlet port cover clockwise to open.

Prom loading 2

IMPORTANT

Take care when drawing back buffer from the flow cell. Do not remove more than 20-30 µl, and make sure that the array of pores are covered by buffer at all times. Introducing air bubbles into the array can irreversibly damage pores.

After opening the inlet port, draw back a small volume to remove any air bubbles:

  1. Set a P1000 pipette tip to 200 µl.
  2. Insert the tip into the inlet port.
  3. Turn the wheel until the dial shows 220-230 µl, or until you see a small volume of buffer entering the pipette tip.

Step 3 v1

Load 500 µl of the priming mix into the flow cell via the inlet port, avoiding the introduction of air bubbles. Wait five minutes. During this time, prepare the library for loading using the next steps in the protocol.

Step 4 v1

Thoroughly mix the contents of the Library Beads (LIB) by pipetting.

IMPORTANT

The Library Beads (LIB) tube contains a suspension of beads. These beads settle very quickly. It is vital that they are mixed immediately before use.

We recommend using the Library Beads (LIB) for most sequencing experiments. However, the Library Solution (LIS) is available for more viscous libraries.

In a new 1.5 ml Eppendorf DNA LoBind tube, prepare the library for loading as follows:

Reagent Volume per flow cell
Sequencing Buffer (SB) 100 µl
Library Beads (LIB) thoroughly mixed before use 68 µl
DNA library 32 µl
Total 200 µl

Note: The prepared library is used for loading into the flow cell. Store the library on ice or at 4°C until ready to load.

Complete the flow cell priming by slowly loading 500 µl of the priming mix into the inlet port.

Step 5 v1

Mix the prepared library gently by pipetting up and down just prior to loading.

Load 200 µl of library into the inlet port using a P1000 pipette.

Step 6 v1

Close the valve to seal the inlet port.

Step 7 V2

IMPORTANT

Install the light shield on your flow cell as soon as library has been loaded for optimal sequencing output.

We recommend leaving the light shield on the flow cell when library is loaded, including during any washing and reloading steps. The shield can be removed when the library has been removed from the flow cell.

If the light shield has been removed from the flow cell, install the light shield as follows:

  1. Align the inlet port cut out of the light shield with the inlet port cover on the flow cell. The leading edge of the light shield should sit above the flow cell ID.
  2. Firmly press the light shield around the inlet port cover. The inlet port clip will click into place underneath the inlet port cover.

J2264 - Light shield animation PromethION Flow Cell 8a FAW

J2264 - Light shield animation PromethION Flow Cell 8b FAW

END OF STEP

Close the PromethION lid when ready to start a sequencing run on MinKNOW.

Wait a minimum of 10 minutes after loading the flow cells onto the PromethION before initiating any experiments. This will help to increase the sequencing output.

7. Data acquisition and basecalling

IMPORTANT

Ensure you are using the most recent version of MinKNOW.

We recommend updating MinKNOW to the latest version prior to starting a sequencing run for the best sequencing results.

For more information on updating MinKNOW, please refer to our MinKNOW protocol.

How to start sequencing

Once you have loaded your flow cell, the sequencing run can be started on MinKNOW, our sequencing software that controls the device, data acquisition and real-time basecalling.

Please ensure MinKNOW is installed on your computer or device. Further instructions for setting up a sequencing run can be found in the MinKNOW protocol.

Please ensure when setting up a sequencing run you are using the recommendations outlined below. All other parameters can be left to their default settings.

MinKNOW can be used and set up to sequence in multiple ways:

  • On a computer either direcly or remotely connected to a sequencing device.
  • Directly on a PromethION 24/48 sequencing device.

For more information on using MinKNOW on a sequencing device, please see the device user manuals:

Open the MinKNOW software using the desktop shortcut and log into the MinKNOW software using your Community credentials.

Click on your connected device.

prom 48

Set up a sequencing run by clicking Start sequencing.

Edit 1

Type in the experiment name, select the flow cell postition and enter sample ID. Choose FLO-PRO114M flow cell type from the drop-down menu.

Click Continue to kit selection.

Flow cell selection

Select the Ligation Sequencing Kit V14 (SQK-LSK114).

An expansion kit does not need to be selected.

Click Continue to Run Options to continue.

kit selection

Set the run options to a 72 hour run length and 20 bp minimum read length.

Click Continue to basecalling to continue.

Set the run options to a 72 hour run length and 20 bp minimum read length

Set up basecalling using the following parameters:

  1. Ensure the basecalling is switched ON.
  2. Next to "Models", click Edit options and choose High accuracy basecaller (HAC) from the drop-down menu.
  3. Ensure barcoding is OFF.

Click Continue to output and continue.

Set up basecalling using the following parameters

Keep the output format and filtering options to their default settings.

Click Continue to final review to continue.

Keep the output format and filtering options to their default settings

Click Start to start sequencing.

You will be automatically navigated to the Sequencing Overview page to monitor the sequencing run.

Click Start to start sequencing

Data analysis after sequencing

After sequencing has completed on MinKNOW, the flow cell can be reused or returned, as outlined in the Flow cell reuse and returns section.

After sequencing and basecalling, the data can be analysed, as outlined in the Downstream analysis section.

8. Downstream analysis

Bioinformatics analysis

If basecalling is not performed during live sequencing, raw sequencing data (.POD5 format) can be processed post-sequencing.

This can be achieved using the tool Dorado, which enables basecalling and subsequent alignment to a reference genome.

Dorado can also detect modified bases by using the modified-bases option (e.g. --modified-bases 5mCG_5hmCG). This will integrate methylation tags directly into the aligned BAM file. We also recommend applying a minimum QScore cutoff (--min-Qscore <min_QScore>), which serves as a quality control measure to ensure only high-quality reads are used in downstream processes.


1. The command below demonstrates how to initiate basecalling with Dorado, followed by sorting, and indexing the output using Samtools. Please see the Dorado documentation here for further details.

Dorado basecaller <model> <input_POD5> --reference <REF> --min-qscore <min_QScore>
| samtools sort -o <OUTPUT_BAM> - && samtools index <OUTPUT_BAM>

For example to SUP basecall with 5mCG and 5hmCG detected in CpG context, and with a QScore filter of 10 we can use:

Dorado basecaller sup --modified-bases 5mCG_5hmCG input.pod5 --reference ref.fasta --min-qscore 10
| samtools sort -o output.bam > - && samtools index output.bam

2. It is also recommended to remove reads that have a poor alignment score i.e. 10. This can be achieved as follows:

samtools view -q <min_map_q> -bh -o <OUTPUT_BAM> <INPUT_BAM> && samtools index -@ <threads> <OUTPUT_BAM>

3. The output from Dorado basecaller can be demultiplexed into per-barcode BAMs using Dorado demux. E.g.

Dorado demux --output-dir <output-dir> --no-classify <input-bam>

4. You may optionally omit methylation information from read ends using modkit adjust-mods or modkit tools with --edge-filter option. This may help increase methylation call precision, as the very end of reads, approximately 27 bases, may suffer from loss in methylated bases due to the chemistry used to repair ends in library preparation (see our know-how document for further details).

modkit adjust-mods --edge-filter 0 27 <IN_BAM> <OUTPUT_BAM>

The modified .bam file can be used with external tools that use a .bam file as input for further data analysis and exploration.

Post-basecalling analysis

There are several options for further analysing your basecalled data:

1. EPI2ME workflows

For in-depth data analysis, Oxford Nanopore Technologies offers a range of bioinformatics tutorials and workflows available in EPI2ME. The platform provides a vehicle where workflows deposited in GitHub by our Research and Applications teams can be showcased with descriptive texts, functional bioinformatics code and example data.

2. Research analysis tools

Oxford Nanopore Technologies' Research division has created a number of analysis tools, which are available in the Oxford Nanopore GitHub repository. The tools are aimed at advanced users, and contain instructions for how to install and run the software. They are provided as-is, with minimal support.

3. Community-developed analysis tools

If a data analysis method for your research question is not provided in any of the resources above, please refer to the resource centre and search for bioinformatics tools for your application. Numerous members of the Nanopore Community have developed their own tools and pipelines for analysing nanopore sequencing data, most of which are available on GitHub. Please be aware that these tools are not supported by Oxford Nanopore Technologies, and are not guaranteed to be compatible with the latest chemistry/software configuration.

9. Flow cell reuse and returns

Materials
  • Flow Cell Wash Kit (EXP-WSH004)

After your sequencing experiment is complete, if you would like to reuse the flow cell, please follow the Flow Cell Wash Kit protocol and store the washed flow cell at 2-8°C.

The Flow Cell Wash Kit protocol is available on the Nanopore Community.

TIP

We recommend you to wash the flow cell as soon as possible after you stop the run. However, if this is not possible, leave the flow cell on the device and wash it the next day.

Alternatively, follow the returns procedure to flush out the flow cell ready to send back to Oxford Nanopore.

Instructions for returning flow cells can be found here.

Note: All flow cells must be flushed with deionised water before returning the product.

IMPORTANT

If you encounter issues or have questions about your sequencing experiment, please refer to the Troubleshooting Guide that can be found in the online version of this protocol.

10. Issues during DNA/RNA extraction and library preparation

Below is a list of the most commonly encountered issues, with some suggested causes and solutions.

We also have an FAQ section available on the Nanopore Community Support section.

If you have tried our suggested solutions and the issue still persists, please contact Technical Support via email (support@nanoporetech.com) or via LiveChat in the Nanopore Community.

Low sample quality

Observation Possible cause Comments and actions
Low DNA purity (Nanodrop reading for DNA OD 260/280 is <1.8 and OD 260/230 is <2.0–2.2) The DNA extraction method does not provide the required purity The effects of contaminants are shown in the Contaminants document. Please try an alternative extraction method that does not result in contaminant carryover.

Consider performing an additional SPRI clean-up step.
Low RNA integrity (RNA integrity number <9.5 RIN, or the rRNA band is shown as a smear on the gel) The RNA degraded during extraction Try a different RNA extraction method. For more info on RIN, please see the RNA Integrity Number document. Further information can be found in the DNA/RNA Handling page.
RNA has a shorter than expected fragment length The RNA degraded during extraction Try a different RNA extraction method. For more info on RIN, please see the RNA Integrity Number document. Further information can be found in the DNA/RNA Handling page.

We recommend working in an RNase-free environment, and to keep your lab equipment RNase-free when working with RNA.

Low DNA recovery after AMPure bead clean-up

Observation Possible cause Comments and actions
Low recovery DNA loss due to a lower than intended AMPure beads-to-sample ratio 1. AMPure beads settle quickly, so ensure they are well resuspended before adding them to the sample.

2. When the AMPure beads-to-sample ratio is lower than 0.4:1, DNA fragments of any size will be lost during the clean-up.
Low recovery DNA fragments are shorter than expected The lower the AMPure beads-to-sample ratio, the more stringent the selection against short fragments. Please always determine the input DNA length on an agarose gel (or other gel electrophoresis methods) and then calculate the appropriate amount of AMPure beads to use. SPRI cleanup
Low recovery after end-prep The wash step used ethanol <70% DNA will be eluted from the beads when using ethanol <70%. Make sure to use the correct percentage.

11. Issues during the sequencing run

Below is a list of the most commonly encountered issues, with some suggested causes and solutions.

We also have an FAQ section available on the Nanopore Community Support section.

If you have tried our suggested solutions and the issue still persists, please contact Technical Support via email (support@nanoporetech.com) or via LiveChat in the Nanopore Community.

Fewer pores at the start of sequencing than after Flow Cell Check

Observation Possible cause Comments and actions
MinKNOW reported a lower number of pores at the start of sequencing than the number reported by the Flow Cell Check An air bubble was introduced into the nanopore array After the Flow Cell Check it is essential to remove any air bubbles near the priming port before priming the flow cell. If not removed, the air bubble can travel to the nanopore array and irreversibly damage the nanopores that have been exposed to air. The best practice to prevent this from happening is demonstrated in this video.
MinKNOW reported a lower number of pores at the start of sequencing than the number reported by the Flow Cell Check The flow cell is not correctly inserted into the device Stop the sequencing run, remove the flow cell from the sequencing device and insert it again, checking that the flow cell is firmly seated in the device and that it has reached the target temperature. If applicable, try a different position on the device (GridION/PromethION).
MinKNOW reported a lower number of pores at the start of sequencing than the number reported by the Flow Cell Check Contaminations in the library damaged or blocked the pores The pore count during the Flow Cell Check is performed using the QC DNA molecules present in the flow cell storage buffer. At the start of sequencing, the library itself is used to estimate the number of active pores. Because of this, variability of about 10% in the number of pores is expected. A significantly lower pore count reported at the start of sequencing can be due to contaminants in the library that have damaged the membranes or blocked the pores. Alternative DNA/RNA extraction or purification methods may be needed to improve the purity of the input material. The effects of contaminants are shown in the Contaminants Know-how piece. Please try an alternative extraction method that does not result in contaminant carryover.

MinKNOW script failed

Observation Possible cause Comments and actions
MinKNOW shows "Script failed"
Restart the computer and then restart MinKNOW. If the issue persists, please collect the MinKNOW log files and contact Technical Support. If you do not have another sequencing device available, we recommend storing the flow cell and the loaded library at 4°C and contact Technical Support for further storage guidance.

Pore occupancy below 40%

Observation Possible cause Comments and actions
Pore occupancy <40% Not enough library was loaded on the flow cell Ensure the correct volume and concentration as stated on the appropriate protocol for your sequencing library is loaded onto the flow cell. Please quantify the library before loading and calculate fmols using tools like the Promega Biomath Calculator, choosing "dsDNA: µg to fmol"
Pore occupancy close to 0 The Ligation Sequencing Kit was used, and sequencing adapters did not ligate to the DNA Make sure to use the NEBNext Quick Ligation Module (E6056) and Oxford Nanopore Technologies Ligation Buffer (LNB, provided in the sequencing kit) at the sequencing adapter ligation step, and use the correct amount of each reagent. A Lambda control library can be prepared to test the integrity of the third-party reagents.
Pore occupancy close to 0 The Ligation Sequencing Kit was used, and ethanol was used instead of LFB or SFB at the wash step after sequencing adapter ligation Ethanol can denature the motor protein on the sequencing adapters. Make sure the LFB or SFB buffer was used after ligation of sequencing adapters.
Pore occupancy close to 0 No tether on the flow cell Tethers are adding during flow cell priming (FLT tube for Kit 9, 10, 11, FCT for Kit 14, and FTU for ultra-long DNA kits). Make sure FLT/FCT/FTU was added to the buffer (FB for Kit 9, 10, 11, and FCF for Kit 14) before priming.

Shorter than expected read length

Observation Possible cause Comments and actions
Shorter than expected read length Unwanted fragmentation of DNA sample Read length reflects input DNA fragment length. Input DNA can be fragmented during extraction and library prep.

1. Please review the Extraction Methods in the Nanopore Community for best practice for extraction.

2. Visualise the input DNA fragment length distribution on an agarose gel before proceeding to the library prep. DNA gel2 In the image above, Sample 1 is of high molecular weight, whereas Sample 2 has been fragmented.

3. During library prep, avoid pipetting and vortexing when mixing reagents. Flicking or inverting the tube is sufficient.

Large proportion of unavailable pores

Observation Possible cause Comments and actions
Large proportion of unavailable pores (shown as blue in the channels panel and pore activity plot)

image2022-3-25 10-43-25 The pore activity plot above shows an increasing proportion of "unavailable" pores over time.		 Contaminants are present in the sample Some contaminants can be cleared from the pores by the unblocking function built into MinKNOW. If this is successful, the pore status will change to "sequencing pore". If the portion of unavailable pores stays large or increases:

1. A nuclease flush using the Flow Cell Wash Kit (EXP-WSH004) can be performed, or
2. Run several cycles of PCR to try and dilute any contaminants that may be causing problems.

Large proportion of inactive pores

Observation Possible cause Comments and actions
Large proportion of inactive/unavailable pores (shown as light blue in the channels panel and pore activity plot. Pores or membranes are irreversibly damaged) Air bubbles have been introduced into the flow cell Air bubbles introduced through flow cell priming and library loading can irreversibly damage the pores. Watch the Priming and loading your flow cell video for best practice
Large proportion of inactive/unavailable pores Certain compounds co-purified with DNA Known compounds, include polysaccharides, typically associate with plant genomic DNA.

1. Please refer to the Plant leaf DNA extraction method.
2. Clean-up using the QIAGEN PowerClean Pro kit.
3. Perform a whole genome amplification with the original gDNA sample using the QIAGEN REPLI-g kit.
Large proportion of inactive/unavailable pores Contaminants are present in the sample The effects of contaminants are shown in the Contaminants Know-how piece. Please try an alternative extraction method that does not result in contaminant carryover.

Temperature fluctuation

Observation Possible cause Comments and actions
Temperature fluctuation The flow cell has lost contact with the device Check that there is a heat pad covering the metal plate on the back of the flow cell. Re-insert the flow cell and press it down to make sure the connector pins are firmly in contact with the device. If the problem persists, please contact Technical Services.

Failed to reach target temperature

Observation Possible cause Comments and actions
MinKNOW shows "Failed to reach target temperature" The instrument was placed in a location that is colder than normal room temperature, or a location with poor ventilation (which leads to the flow cells overheating) MinKNOW has a default timeframe for the flow cell to reach the target temperature. Once the timeframe is exceeded, an error message will appear and the sequencing experiment will continue. However, sequencing at an incorrect temperature may lead to a decrease in throughput and lower q-scores. Please adjust the location of the sequencing device to ensure that it is placed at room temperature with good ventilation, then re-start the process in MinKNOW. Please refer to this FAQ for more information on MinION temperature control.

Last updated: 8/20/2024

Document options

PromethION
