MinION and flow cells

Overview

For Research Use Only

Document version: HWTD_5000_v1_revO_03May2016

1. The MinION Mk1B and Mk1C

The MinION Mk1B

The MinION Mk1B instrument is an electronic device that provides the interface between the user’s PC and the nanopore sensor. It also provides power to the application-specific integrated circuit (ASIC), performs temperature control, shields the sensor from electronic noise, and transfers data to the PC. The device measures 105 mm x 33 mm x 23 mm.

The MinION Mk1B has a sensor and control program to maintain the temperature during a sequencing run and dissipate the heat generated from the ASIC. There is no active heating element in the device; heat from the ASIC and control of the fan speed are sufficient to allow the MinION Mk1B to maintain a steady temperature of 37° C in environments ranging from 18° C to 24° C.

The metal case of the MinION Mk1B is electrically grounded to the printed circuit board and protects the sensor from electric fields. Continuity between PCB, instrument enclosure and lid is provided by magnetic contacts and a conductive hinge assembly. A magnetic shield is also present to further reduce noise in the signal.

Power and data transfer is achieved through a single USB 3.0 port. This provides all power required by the instrument and ASIC (5 V @ 900 mA max). Data transfer rates on USB 3.0 are sufficient to handle all 512 recording channels outputting raw data at 33 kHz.

The MinION Mk1B is shipped together with a USB cable and a Configuration Test Cell.

Configuration pack 02

The MinION Mk1B is adaptable for DNA, RNA sequencing, protein sensing and other nanopore sensing techniques. The MinION Mk1B is operated using the MinKNOW™ software, which also performs basecalling. Other basecalling and analysis options are available in Oxford Nanopore's range of software.

The MinION Mk1C

The MinION Mk1C combines the real-time, rapid, portable sequencing of a MinION Mk1B with a Graphical Processing Unit (GPU) and a high-resolution screen. The device applies the technology of the MinION Mk1B with the basecalling power of the MinIT and the additional features of smartphone, such as a cellular modem and touch screen.

component part image for mk 1c - white border small

MinKNOW is the control software for Oxford Nanopore Technologies sequencing platforms and it comes installed on the MinION Mk1C, without the need of a laptop.

2. MinION Configuration Test Cell

Configuration test cell (CTC)

The hardware check is the process of testing that communication between the MinION Mk1B and Mk1C device and the control software on the host computer is operational prior to experimental work being performed. This is carried out in the absence of any chemistry and uses a specific flow cell known as the Configuration Test Cell (CTC).

Ctc2

3. Data connection

USB cable and port

The USB 3.0 cable is used to connect the MinION Mk1B device to the host computer.

The crimped connecter end is attached to the USB 3.0 port on the MinION Mk1B and the flat end attaches to a USB 3.0 port on the host computer.

Usbcable

LEDs

When the MinION Mk1B is connected, lights will be visible through the side of the MinION Mk1B and may be flashing.

Minion leds

To power on the MinION Mk1C

Use the AC/DC adapter included with the device to power the MinION Mk1C.

Please see the Power section of the MinION Mk1C protocol.

4. Prerequisites for using the MinION Mk1B and Mk1C

Prerequisites for using the MinION Mk1B and Mk1C

In order to operate the systems the way they are intended, the following prerequisites must be fulfilled:

  • You should have a general understanding of how to use the personal computer and operating system intended to operate the device
  • You must read and understand the safety instructions
  • The instrument and software should be installed, configured and tested according to the Configuration guide
  • You should understand the concepts of nanopore sensing

5. Safety information for using the MinION Mk1B and Mk1C

Intended use of the MinION Mk1B and Mk1C

Oxford Nanopore Technologies® MinION device is an electronic analysis system for use in scientific research. The core technology is built around a nanopore that is able to detect single molecule events including nucleic acids (DNA/RNA), proteins and small molecules.

It is for research use only and not for in vitro diagnostic or therapeutic use.

The purpose of the safety information

The safety information provides you with the details needed to install and use the system safely.

MinION Mk1B electrical output values

Supply voltage 5 V
Operating current 800 mA for 10 k
900 mA for 33 k
1 A maximum
Maximum power 5 W

MinION Mk1C electrical output values

Power supply 6.3-19.6 VDC
Max rated current 10 A
Max rated power 60 W

Safety notices

Safety symbols warning

WARNING: indicates a hazardous situation which, if not avoided, could result in death or serious injury. It is important not to proceed until all stated conditions are met and clearly understood.

Safety symbols caution

CAUTION: indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. It is important not to proceed until all stated conditions are met and clearly understood.

Safety symbols advisory

ADVISORY: indicates instructions that must be followed to avoid damage to the product or other equipment.

IMPORTANT

The safety notices below are intended to supplement, not supersede, the normal safety requirements prevailing in the user’s country.

Material Safety Data Sheets (MSDSs)

The latest versions of the Material Safety Data Sheets are available in the Nanopore Store. Each product has a Safety and Legal tab, and the MSDSs are saved here and can be downloaded as required. For further assistance, please contact support@nanoporetech.com .

Safety symbols warning

Read and understand the MSDSs before handling, working with or storing the chemicals being used within the Oxford Nanopore Technologies® sequencing device.

Minimise contact with the chemicals by wearing protective clothing, safety glasses and gloves. The MSDS will carry specific requirements.

Minimise inhalation of chemicals by using appropriate and adequate ventilation. The MSDS will carry any specific requirements.

Continuously check for any spills or leakages. If a spill or leak occurs, follow the cleanup guidelines provided on the MSDS.

All components of the MinION devices system should be handled, stored and disposed of in accordance with local, state/provincial or national laws and regulations.

General precautions

Safety symbols warning

When handling toxic, radioactive or pathogenic samples as defined by the WHO Laboratory Biosafety Manual, observe the safety regulations of the specific local in question.

Safety symbols warning

Do not use the MinION device if it has suffered any damage, e.g. to power cables, data transfer cables, power supplies, or flow cells.

Personal protection

Safety symbols warning

Specimens and reagents containing materials from humans should be treated as potentially infectious. Use safe laboratory procedures as outlined in publications such as Biosafety in Microbiological and Biomedical Laboratories (http://www.cdc.gov/biosafety/publications/bmbl5/index.htm).

Safety symbols warning

The operator has to take all necessary actions to avoid spreading hazardous biological agents in the vicinity of the system. The facility should comply with the national code of practice for biosafety.

Safety symbols warning

Samples being loaded into the flow cell should be used, stored and disposed of according to the required safety regulations and laws. Consult the responsible body for safety in your lab for local regulations.

Safety symbols warning

Samples containing infectious agents should be handled with the greatest of care and in accordance with the required safety regulations and laws.

Safety symbols warning

It is good laboratory practice to always wear safety glasses, gloves (two pairs if working with infectious agents) and a lab coat. There may be other locally advised items which add to this recommendation.

Use of the MinION Mk1B and Mk1C, flow cells and reagents

Safety symbols warning

When handling toxic, radioactive or pathogenic samples as defined by the WHO Laboratory Biosafety Manual, observe the specific local regulations.

Safety symbols caution

Loading excess buffer, sample or de-ioinised water to the Flow Cell will cause an overflow of the waste compartment. Absorbent material should be used to capture sample and buffer which will come out through the waste port. All material should be disposed of in line with local regulations for biological waste.

Safety symbols caution

In the unlikely event that the sequencing device is found to be hot during use, disconnect the device from the host computer and refer to troubleshooting guidelines.

Maintenance

Safety symbols warning

Repairs must only be performed by Oxford Nanopore Technologies, and no components should be replaced. Contact support@nanoporetech.com in the event of damage to the sequencing device or flow cells.

Safety symbols warning

Before using cleaning or decontamination methods other than those stipulated by the manufacturer, contact the manufacturer to ensure that the intended method will not damage the sequencing device and/or flow cell.

Safety symbols warning

When returning sequencing devices and/or flow cells, ensure that they are fully decontaminated and do not present any health risk to our staff.

Disposal and recycling instructions

Safety symbols warning

Used plasticware, such as reagents, tubes and pipette tips, must be collected and disposed of properly in accordance with local safety regulations and laboratory procedures.

Safety symbols warning

The flow cell buffer, wash kit buffers, and library preparation kit buffers must not be mixed and must be kept away from strong acids and alkalis.

Safety symbols warning

The flow cell buffer, wash kit buffers, and library preparation kit buffers must be disposed of according to the local regulations. They must not be disposed of down a sink.

Safety symbols warning

The Terms and Conditions for the use of sequencing devices stipulate that any flow cells that have been used with or otherwise been in contact with materials of Biohazard Level 3 or higher (“ Contaminated Flow Cells ”) must not be returned. Proof of legal and appropriate destruction of any contaminated Flow Cells will be required.

Safety symbols warning

The sequencing device shall be decontaminated before decommissioning, and all local regulations for electronic and electrical waste shall be followed with regard to disposal of the components if they are not being returned to Oxford Nanopore Technologies.

Safety symbols warning

The flow cell shall be disposed of as hazardous biological waste, and all local regulation for such waste shall be followed if they are not being returned to Oxford Nanopore Technologies.

Labels on the instrument

Label on the MinION Mk1B:

Minion mk1b label

Label on the SpotON Flow Cell:

Spoton label
IMPORTANT

Emergency procedures

In case of emergency, switch the computer off at the power switch and unplug the USB 3.0 cable from the computer.

6. MinION Mk1B Regulatory information

Declaration of conformity

The MinION Mk1B conforms to the EMC and Electrical Safety directives as outlined in the EC Declaration of Conformity.

Ec declaration 2016

International standards

The MinION Mk1B is certified to the following international standards:

Certification Country
MET; UL61010/CSA-C22.2 No. 61010, third Edition: Electrical Equipment for Measurement, Control and Laboratory Use, Revision: May 11, 2012
USA and Canada
RCM compliance Australia and New Zealand

7. SpotON™ Flow Cells

The SpotON™ Flow Cells

The Flow Cells contain the proprietary sensor array, Application-Specific Integrated Circuit (ASIC) and nanopores that are needed to perform a complete single-molecule sensing experiment.

Two flow cells are included in the Starter Pack, and they can also be purchased separately.

Flow cell ports

Flow cell packaging

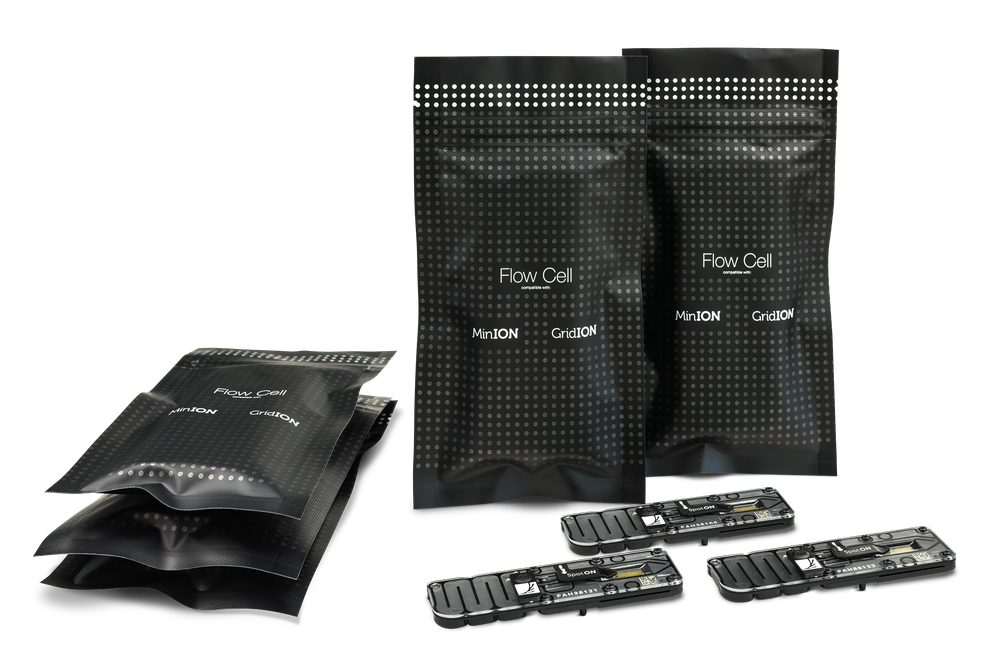

The flow cells are shipped in a sealed pouch to maintain the environment for the flow cell chemistry.

Flow cell packaging

Flow cells are shipped at a constant temperature to avoid temperature cycling, and for long term storage it is recommended that they are kept in an environment not prone to large temperature fluctuations. It is recommended to store the flow cells:

  • For 1 month, unopened, at ambient temperatures (DO NOT FREEZE)
  • 3 months chilled at 2-8º C, or once the package is opened

Returns packaging

The flow cells are supplied with the packaging materials for returns to Oxford Nanopore.

The returns packaging includes:

  • Flow cell container seal
  • Plastic shipping container (protects the flow cell during shipments)
  • Flow cell pouch (keep when unpacking the flow cell)
  • External envelope

The envelopes and seals can be found in the flow cell packaging.

8. Appearance

Flow cell appearance

The flow cell is a disposable element of the sequencing platform that provides the fluidic interface between the nanopores and the electrodes, allowing the user’s sample to be analysed.

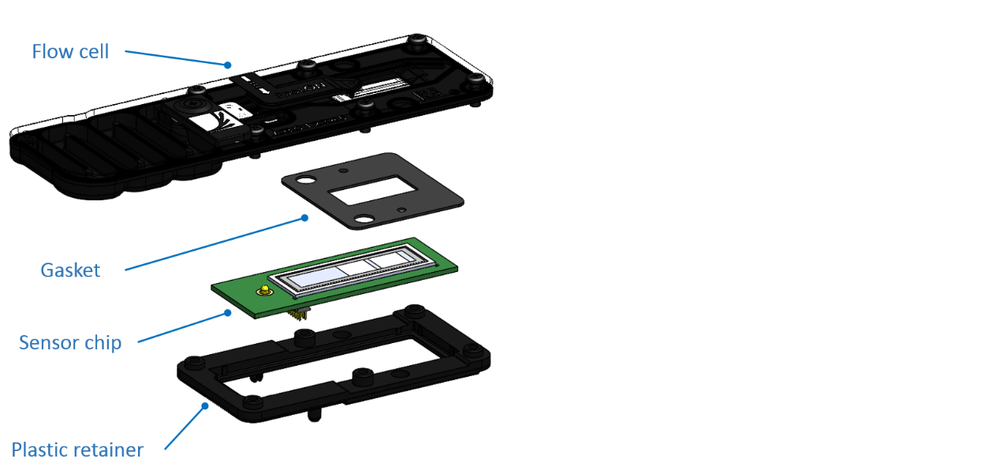

The flow cell is composed of: a moulded plastic fluidic chamber and retainer, a fluidic gasket, and the sensor chip containing a printed circuit board (PCB) and an application specific integrated circuit (ASIC).

Flow cell components

The flow cell dimensions are 92.4 mm x 28.0 mm x 5.8 mm; on the upper side all the ports and sensor chip are visible. The flow cell clips into the MinION Mk1B, Mk1C or GridION device.

The fluidics of the flow cell are described below. The sensor array is where the sequencing chemistry happens. The array is made up of 512 sensing wells, each designed to collect sequencing data through a single nanopore.

Flow cell ports

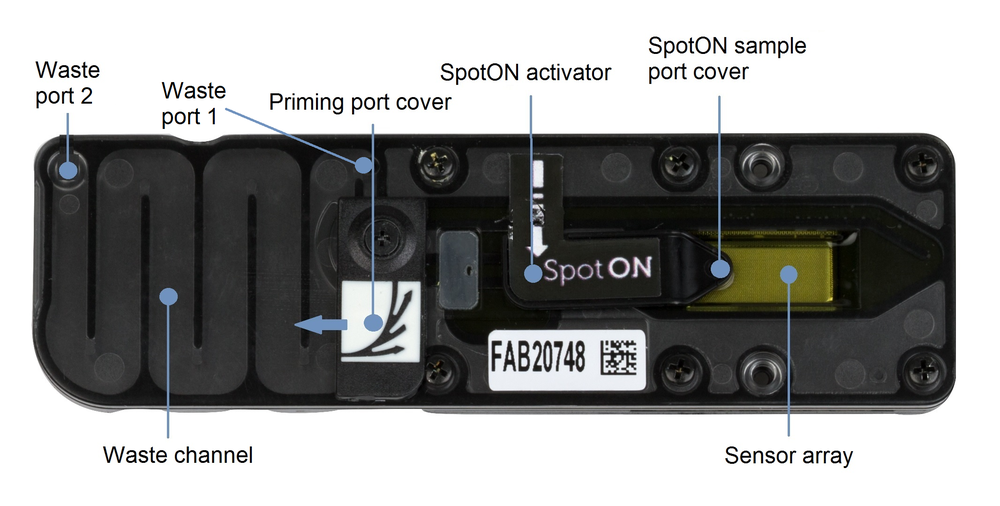

The flow cell itself is designed with a number of distinct areas. These areas include: the priming port, SpotON port, sensor array, waste channel, and two waste ports. Sample can be added directly onto the nanopore array via the SpotON port. The volume of the main chamber area over the sensor array is 100 μl, while the waste can hold 2 ml.

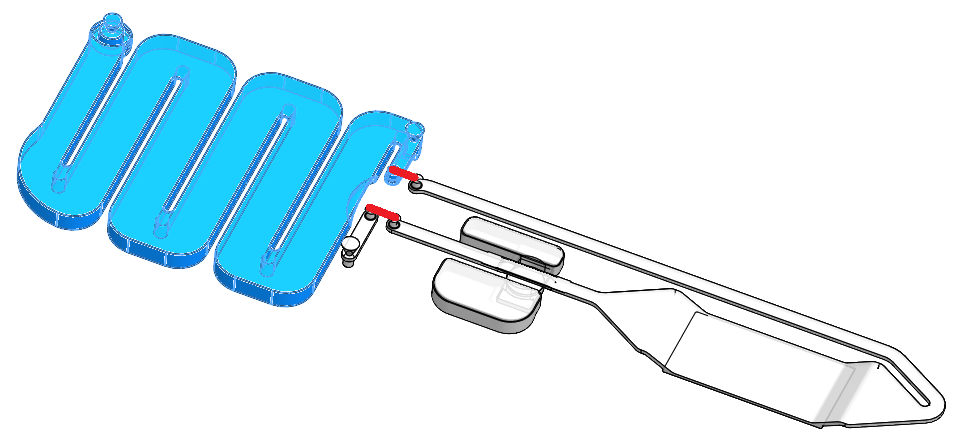

Flow cell valves The path of the liquid through the flow cell is regulated by two valves: one immediately downstream of the priming port, and the other between the end of the array and the waste chamber (valves shown in the diagram below in red). The flow cells are shipped with the priming port covered and both valves closed.

Valves

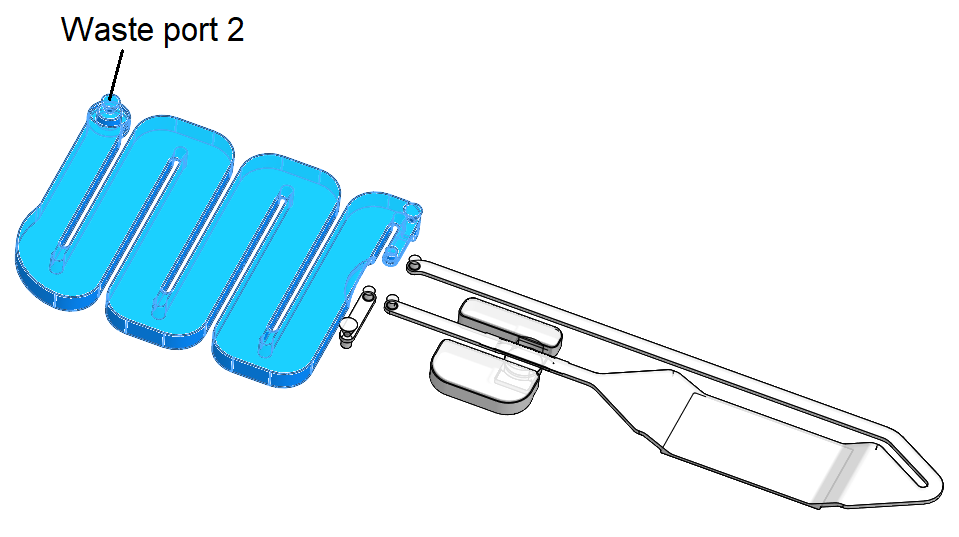

Waste chamber The waste chamber has a total capacity of 2 ml and is accessible when the valve at the end of the array is open. Waste port 2 allows excess sample to be removed with a pipette if, for instance, the flow cell is topped up mid-run.

Waste chamber

Storage buffer

The flow cell has three compartments: the common electrode reservoir which is separated from the bulk by a diffusion barrier, the bulk which is separated from the individual wells by a membrane, and the individual wells. The flow cells are shipped with the storage buffer (yellow) in all three compartments to maintain osmotic balance. The storage buffer contains salt and the standard redox couple that enables current to run through the nanopore. The storage buffer also contains a QC DNA molecule that gives a distinct signal which helps to identify functional pores during Platform QC.

Flow cell compartments

Before library loading, the flow cell is flushed with Priming mix (a mixture of RBF and nuclease-free water, shown as blue), which displaces the storage buffer from the bulk compartment.

Flow cell compartments flush

9. Flow cell chip

ASIC

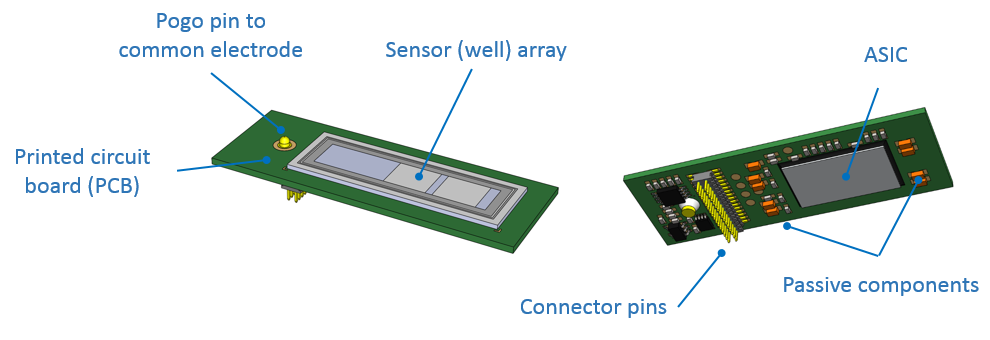

The ASIC is a high-density array of low-noise amplifier circuits that is used to measure and provide a digital readout of the current flow in the electrochemical circuit between the individual well and shared common electrode. In addition, the ASIC receives commands from the host software system to provide control functionality for the sensor array, including: acquisition frequency, signal filtering, sensor current range, multiplex input selection, electrode bias potential generation, and deselection of sensor inputs with broken membranes to avoid saturation of the measurement circuits.

The flow cell ASIC is designed to operate across a wide range of conditions depending on the application. Typical operating cases are acquisition frequency of 2 to 20 kHz while measuring 10s to 1000s of pico-amperes. The applied electrode bias potential can be controlled using scripts in MinKNOW with a range of ± 1 V.

The ASIC also has the ability to use the applied potential to unblock any of the channels that are not sequencing. A reversal of the potential can “flick” any stray DNA or contaminants out of the pore on a per channel basis and reset the channel to an “open pore” state to allow the next strand to be sequenced. This ability is further utilised in “Read Until...” schemes, where the MinION Mk1B and Mk1C can be programmed to responds to a sequence or signature, choosing to either keep or reject the DNA stand in the nanopore on an individual basis, maximising the time to results and allowing the user to change the priority of sequencing during a run.

ASIC

Channel layout

The MinION Mk1B and Mk1C/GridION flow cell currently has 2048 active well electrodes organised hexagonally on the surface of the array. The active wells are arranged in two blocks of 32x32 with a set of four inactive wells separating them. There are also inactive wells present at the edges of the array where the gasket sits.

The channel map is shown below, viewing the sensor chip from the top with the fluid inlet (or common connection pin) to the left of the sensor.

Minion flow cell layout

Layout:

  • The current hexagonal packing is a result of the horizontal offset of alternative rows and the original chip design evolving from a square array
  • There is a section of four columns in the middle where there are wells on the surface of the chip, but these wells are not connected to the ASIC (black hexagons)
  • There are also some redundant wells around the edges of the sensor (black hexagons)

Basic numbers:

  • 2048 sensor wells available (64 x 32)
  • 512 measurement channels, 4x Multiplexing (MUX), see the MUX scan below.

Features:

  • Channels 1-64 occur along the top rows of the chip (the other low channel numbers are at the bottom)
  • Channels order down the chip: 1-64, 449-512, 385-448, 321-384, 257-320, 193-256, 129-192, 65-128
  • MUXs run from left to right in the order: 3, 4, 1, 2, 2, 1, 4, 3

Relationship between nanopore sensors and ASIC channels

The ASIC is capable of recording through all channels simultaneously, with the 2048 active well electrodes organised in groups of four. The choice of a single well for each of the recording channels is referred to as multiplexing. Multiplexing the nanopore array is used to improve the yield of channels containing a single pore and the sequencing output of the consumable. Is it common to see data provided with ‘channel’ and ‘MUX’ information. Most sequencing scripts perform a ‘MUX selection’ where the best 512 wells are chosen as the first group. Later groups of wells can be switched to during a sequencing run to provide more output.

The relationship between wells and channels

Sensor array

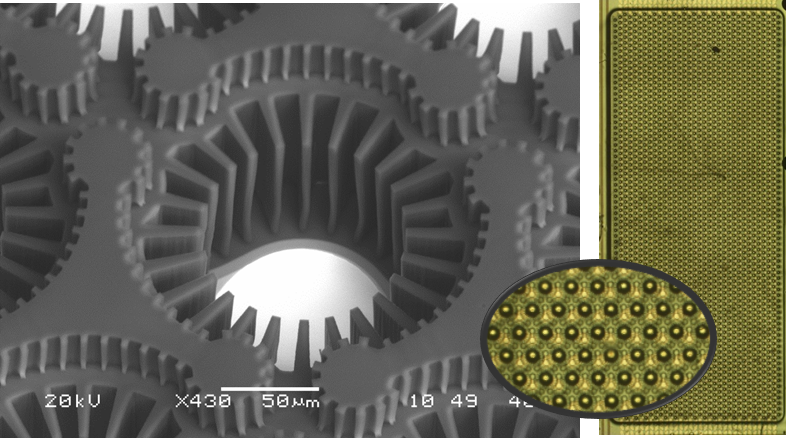

The sensor area of the flow cell is comprised of many individual sensor wells, each designed to hold a single nanopore. These sensor wells have a micro patterned structure, created using photolithographic techniques, sitting on a silicon substrate. The well provides the geometry for forming a membrane so that a single nanopore can be inserted. The well is approximately 90 μm deep with a platinum electrode at the base of the well. This electrode is then connected to the PCB through vias in the silicon layer. On the top of the wells are pillars of photoresist that are patterned to control the movement of a hydrophobic pretreatment. The wells are also patterned with additional features to control the pretreatment distribution.

Wells SEM image of a single sensor well (left) and the hexagonal array of wells (right).

Membranes

For each of the wells, a membrane is formed over the array so that the ionic fluid underneath the membrane is trapped. The membrane provides an insulating layer, so that once a nanopore is inserted, communication between the electrodes is dominated by the signal through that pore. Oxford Nanopore uses a proprietary amphiphilic polymer and a synthetic pretreatment oil to form the membrane. The use of this polymer gives the flow cell membranes increased robustness to physical disruption, chemicals, and biological materials.

Electrodes

Electrodes are used to create a circuit with the membrane and the buffer, present in the sensor array, so that electrophysiological measurements can be made as the ion flow changes through the pores.

10. Flow cell checks and MUX scans

Factors contributing to the nanopore signal

The nanopore and molecules interacting with the nanopore

E.g. the motor protein.

Applied voltage

  • Set voltage, defined in the protocol scripts in MinKNOW
  • The resistance of the electrochemical path between the common electrode and the well electrode
  • The electrochemistry at the electrodes

Temperature

Higher temperatures increase the mobility of charged species and thereby increase the current. A range of set temperatures is used for various steps of the sequencing run:

Temperatures

Buffer

The storage and running buffers contain different concentrations of charged species, and will affect the pores and DNA translocation differently.

Platform QC

The choice of which well is used is made via the multiplexer (MUX), a switch which allows the selection of the best channels for sequencing. For a summary of the MUX layout, please see the channel layout description above. The Platform QC is a scan of each MUX in turn to see if a pore is present, with the aim of determining the total number of functional pores present in a chip. Platform QC must be run on a new flow cell within ten days of receipt.

The Platform QC script runs through each MUX in turn, first applying a triangle wave to assess the membrane. Then 180 mV are applied for 30 s, and different metrics contained in the signal, such as current levels, noise measurements and events that can help to classify the signal, are recorded. The pores are classified as 'single pore', 'multiple pores', 'saturated', and 'zero current'. To class a single pore, the software searches for an open pore current level within a given range, combined with the distinct signal of the QC DNA strand that is present in the flow cell storage buffer. The MinKNOW GUI then displays the total number of single pores.

The MUX scan

At the beginning of the sequencing run, when a library has been loaded, an additional MUX scan looks at the performance of the nanopores and groups them into collections of 512 to determine which one will provide the best signal and therefore the best sequence during the time of the run. In a similar fashion to the Platform QC, a 180 mV voltage is applied to each MUX in turn. If there are library DNA strands in any of the pores, these are now used to classify channels. Channels are prioritised for sequencing based on 'strand' first, then 'pore', then 'unavailable' pores.

  • strand - a DNA strand translocating through a single pore
  • pore - an open pore without DNA
  • unavailable - signals that the software is not confident about

The MUX scan report shows the number of active pores, defined as channels in strand and open pore. MinKNOW then groups the best 512 channels for sequencing plus 2nd and 3rd choices that can be utilised during a sequencing run. This is the groups 1, 2, and 3 reported on the GUI. Sequencing is begun from group 1.

Voltage drift during a sequencing run

Once the MinKNOW script proceeds to sequencing, the system goes through a cycle of voltage changes. The current scripts start with an applied voltage of -180 mV, which is optimal for basecalling with R9.4.1 chemistry. However in the process of a run, the voltage drifts due to the depletion of the redox chemistry in the bulk solution.

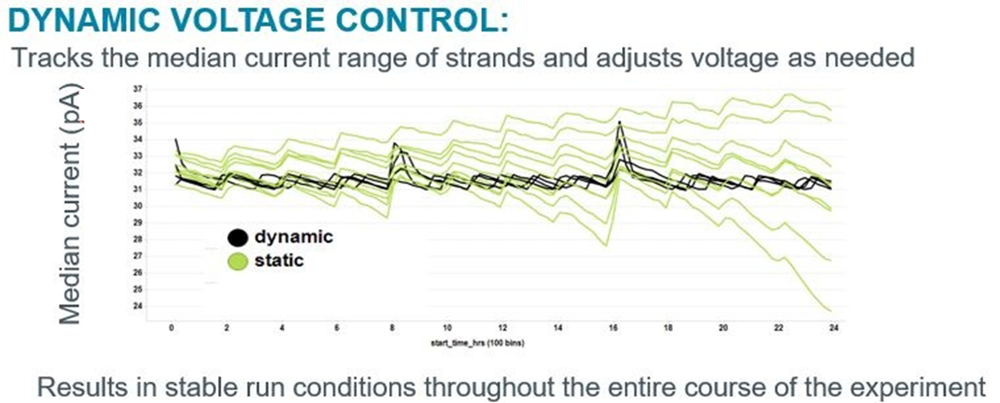

In order to keep the voltage constant, MinKNOW enables "Dynamic Voltage Control", which constantly monitors the raw signal from the device, and adjusts the applied voltage when required. Dynamic Voltage Control (in black) maintains a considerably tighter grouping of current levels, which is more stable over the course of a run than that previously achieved by the Static Voltage Control used in earlier versions of MinKNOW:

Dynamic Voltage control

11. Components for temperature control

Local environment

The MinION Mk1B and Mk1C are able to maintain a heatsink temperature of 37°C on a typical lab bench when the local ambient conditions are between 19°C and 24°C. However, there are a number of external factors which can disrupt the local conditions and which need to be taken into account, for example warm air expelled from laptops, or cool air from a fan or air conditioning system increasing airflow around the MinION Mk1B and Mk1C.

The MinION Mk1B and Mk1C takes approximately 10 minutes to get to temperature. If the heatsink temperature is not running at 37°C, there are a number of simple measures that can bring the MinION Mk1B and Mk1C to the correct running temperature.

IMPORTANT

MinION Mk1B and Mk1C temperature

During an experiment, the heatsink temperatures is shown to the user by the MinKNOW software. Once the heatsink reaches the correct temperature, it remains at a constant throughout the experiment.

Fan control

To maintain the operating temperature range, the MinION Mk1B and Mk1C houses a fan. It is located under the heat pad recess and helps to dissipate heat away from the ASIC. It will switch on and off as required. While it is running, a fan noise may be audible.
