This end to end protocol describes our Nanopore-Only Microbial Isolate Sequencing Solution (NO-MISS): a flexible approach allowing sequencing of 4 to 24 microbial isolate genomes per MinION Flow Cell, generating a minimum coverage of 50x per genome.

The 50X coverage threshold is sufficient for downstream analyses including: accurate assembly and plasmid resolution, AMR profiling, core genome (cg) and whole genome (wg) multi-locus sequence typing (MLST), and cg/wgSNP typing. You can analyse your sequencing data using EPI2ME, which provides a user-friendly bioinformatics workflow.

We provide multiple DNA extraction approaches, depending on requirements, and starting organism (bacteria, fungi/yeast). These are key in achieving reliable flow cell output and genome coverage. The sample specific extraction methods use NEB Monarch® Spin gDNA Extraction Kit, while the universal method uses a bead-beating method and the Maxwell® RCS PureFood Pathogen Kit.

The extracted gDNA is then tagmented and sequenced using our Rapid Barcoding Kit (SQK-RBK114.24 or SQK-RBK114.96). Up to 24 samples per sequencing experiment for bacterial isolates (up to 7 Mb genomes) and up to 8 samples for fungi/yeast isolates can be processed to achieve the 50x coverage threshold. Use a minimum of four barcodes per run to maintain performance.
Detailed instructions for setting up the sequencing run on MinKNOW and downstream analysis are also included for a complete end-to-end protocol. We recommend sequencing up to 72 hours and generating at least 50x coverage per sample (approx. 0.5 Gb per barcode, assuming 5 Mb genome).

We recommend updating MinKNOW to the latest version prior to starting a sequencing run. The basecalling model v4.3 found in Dorado 0.5.0 onwards provides improved accuracy for bacterial DNA and is included in MinKNOW release v24.02 or newer.

For more information on updating MinKNOW, please refer to our MinKNOW protocol.

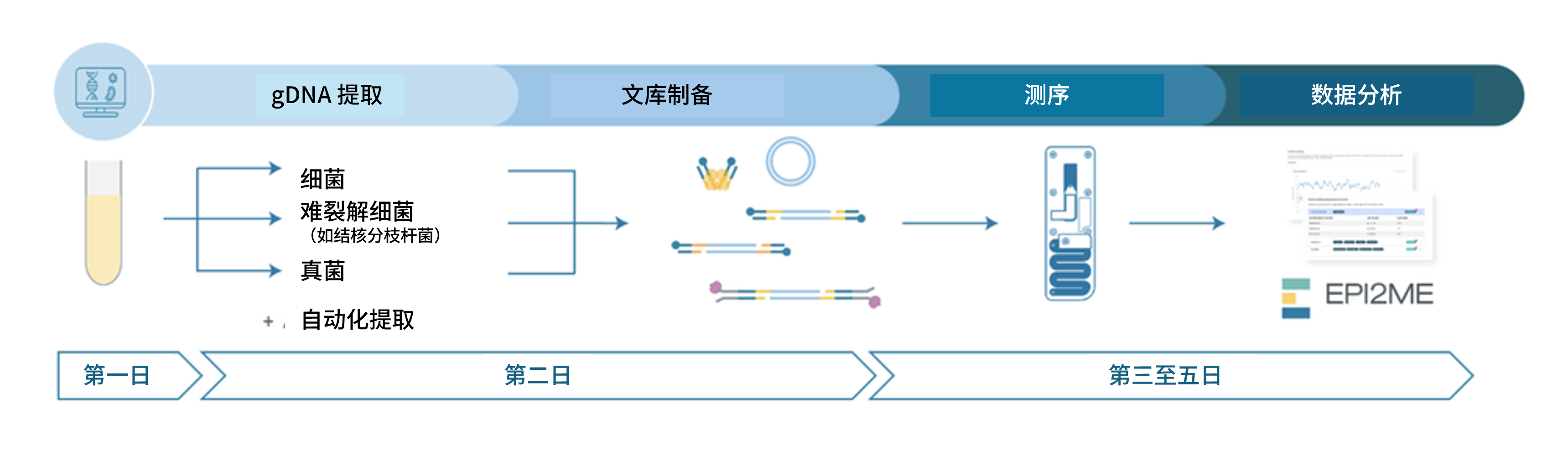

End-to-end workflow overview

Steps in the sequencing workflow:

Prepare for your experiment

You will need to:

• Extract your DNA, and check quantity and purity. The quality checks performed during the protocol are essential in ensuring experimental success.
• Ensure you have your sequencing kit, the correct equipment and third-party reagents.
• Download the software for acquiring and analysing your data.
• Check your flow cell to ensure it has enough pores for a good sequencing run.

Sample preparation

Using the relevant gDNA extraction method, you will need to lyse your cells, extract your gDNA, and quantify the DNA:

• Universal bead-beating method:
• Universal bead-beating gDNA extraction:
  • For high throughput requirements and universal applications.

• Manual column-based methods:
• Bacteria gDNA extraction:
  • For bacteria, such as Escherichia coli, Klebsiella pneumoniae, Pseudomonas aeruginosa, Serratia marcescens, Enterococcus faecalis, and Bacillus subtilis or staphylococci such as Staphylococcus aureus, and Staphylococcus epidermidis.
• Hard to lyse organisms gDNA extraction:
  • For bacteria, such as Mycobacterium tuberculosis.
• Fungi gDNA extraction:
  • For fungi/yeast, such as Candida albicans, Candida tropicalis, and Candida parapsilosis.

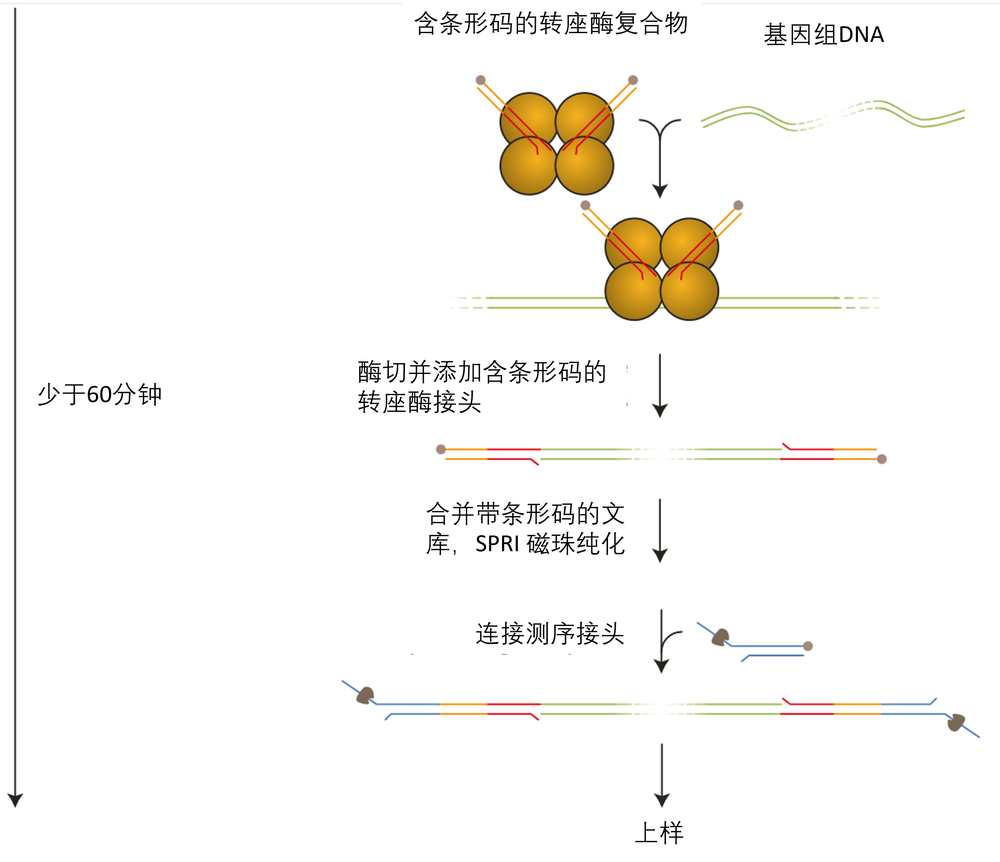

Library preparation

The table below is an overview of the steps required in the library preparation, including timings and stopping points.

Library preparation step	Process	Time	Stop option
DNA barcoding	Tagmentation of the DNA using the Rapid Barcoding Kit V14	15 minutes	4°C overnight
Sample pooling and clean-up	Pooling of barcoded libraries and AMPure XP Bead clean-up	25 minutes	4°C overnight
Adapter ligation	Attach the sequencing adapters to the DNA ends	5 minutes	We strongly recommend sequencing your library as soon as it is adapted
Priming and loading the flow cell	Prime the flow cell and load the prepared library for sequencing	5 minutes

Sequencing and analysis You will need to:

• Start a sequencing run using the MinKNOW software, which will collect raw data to basecall and demultiplex the barcoded reads.
• Perform downstream analysis uing the isolate mode of the wf-bacterial-genomes workflow in EPI2ME.

Input requirements per sample for the extraction methods:

• Universal bead-beating gDNA extraction: 1 ml liquid overnight culture (~1 x 10^8 – 10^9 cfu/ml) or half of a loop of colonies from a plate

• Bacteria gDNA extraction: 200 µl liquid overnight culture (~1 x 10^8 – 10^9 cfu/ml) or 1/8 of a loop of colonies from a plate

• Hard to lyse organisms gDNA extraction: 5 – 10 mg cells from solid or liquid media

• Fungi gDNA extraction: 2 ml of ~1 x 10^7 cfu/ml overnight culture or a full 10 µl inoculating loop from a plate

For library preparation, 200 ng in 10 µl of extracted gDNA per sample is required.

Depending on the extraction protocol used, not all third-party reagents are required.

We have validated and recommend the use of all the third-party reagents used in this protocol. Alternatives have not been tested by Oxford Nanopore Technologies.

For all third-party reagents, we recommend following the manufacturer's instructions to prepare the reagents for use.

Custom CTAB buffer can be prepared instead of purchasing. Below are the reagents and concentrations required, with suggested examples with excess.

Reagent	Stock	Final concentration	Volume for 12 samples	Volume for 24 samples
CTAB	-	2% v/v	60 µl	120 µl
EDTA	0.5 M	40 mM	240 µl	480 µl
Sodium chloride	5 M	1.4 M	833 µl	1,666 µl
Trizma hydrochloride solution, pH 8	1 M	100 mM	300 µl	600 µl
Nuclease-free water	-	-	1567 µl	3,134 µl
Total	-	-	3,000 µl	6,000 µl

Staphylococcal Lysis Buffer (SLB) is required for the bacterial gDNA extraction method for staphylococcal inputs.

Reagent	Stock	Final concentration	Volume for 12 samples with excess	Volume for 24 samples with excess
Trizma hydrochloride solution, pH 9	1 M	100 mM	150 ul	300 µl
Sodium chloride	5 M	10 mM	3 ul	6 µl
SDS	10% v/v	0.1% v/v	15 ul	30 µl
Nuclease-free water	-	-	1332 ul	2664 µl
Total volume	-	-	1,500 ul	3,000 µl

The SDS in the Staphylococcal Lysis Buffer (SLB) is essential for preventing the degradation of staphylococci DNA. Exclusion of SDS from the buffer results in a larger smear of DNA when run on a gel.

DNA质控

选择符合质量和浓度要求的起始DNA至关重要的。使用过少或过多的DNA，或者质量较差的DNA（如，高度碎片化、含有RNA或化学污染物的DNA）都会影响文库制备。

有关如何对DNA样品进行质控，请参考起始DNA/RNA质控实验指南 。

化学污染物

从原始样本中提取DNA的方法不同，可能会导致经纯化的DNA中所残留的化学污染物不同。这会影响文库的制备效率和测序质量。请在牛津纳米孔社区的 Contaminants（污染物）页面 了解更多信息。

我们强烈建议您在开始测序实验前，对测序芯片的活性纳米孔数进行质检。质检需在您收到MinION /GridION /PremethION测序芯片12周之内进行，或者在您收到Flongle测序芯片四周内进行。Oxford Nanopore Technologies会对活性孔数量少于以下标准的芯片进行替换** ：

测序芯片	芯片上的活性孔数确保不少于
Flongle 测序芯片	50
MinION/GridION 测序芯片	800
PromethION 测序芯片	5000

** 请注意：自收到之日起，芯片须一直贮存于Oxford Nanopore Technologies推荐的条件下。且质检结果须在质检后的两天内递交给我们。请您按照 测序芯片质检文档中的说明进行芯片质检。

我们正在将试剂盒中的条形码包装更改为96孔板形式。这一改动将减少塑料浪费，并支持自动化应用。

孔板形式

名称	缩写	管盖颜色	管数	每管溶液体积 (μl)
快速测序文库接头	RA	绿色	1	15
接头缓冲液	ADB	透明	1	100
AMPure XP 磁珠	AXP	琥珀色	2	1200
洗脱缓冲液	EB	黑色	1	500
测序缓冲液	SB	红色	1	700
文库颗粒	LIB	粉色	1	600
文库溶液	LIS	白色管盖，粉色标签	1	600
测序芯片冲洗液	FCF	透明管盖，浅蓝色标签	1	8000
测序芯片系绳	FCT	紫色	1	200
快速连接条形码	RB01-24		两板，每板三套条形码组合	每孔15µl

本产品包含由贝克曼库尔特公司（Beckman Coulter, Inc）生产的 AMPure XP 试剂，并可与试剂盒一起于-20°C 下储存（试剂稳定性将不受损害）。

管装形式

名称	缩写	管盖颜色	管数	每管溶液体积 (μl)
快速测序文库接头	RA	绿色	1	15
接头缓冲液	ADB	透明	1	100
AMPure XP 磁珠	AXP	琥珀色	2	1200
洗脱缓冲液	EB	黑色	1	500
测序缓冲液	SB	红色	1	700
文库颗粒	LIB	粉色	1	600
文库溶液	LIS	白色管盖，粉色标签	1	600
测序芯片冲洗液	FCF	蓝色	6	1170
测序芯片系绳	FCT	紫色	1	200
快速连接条形码	RB01-24	透明	24	15

本产品包含由贝克曼库尔特公司（Beckman Coulter, Inc）生产的 AMPure XP 试剂，并可与试剂盒一起于-20°C 下储存（试剂稳定性将不受损害）。

名称	缩写	管盖颜色	管数	溶液体积 (μl)
快速测序文库接头	RA	绿色	2	15
接头缓冲液	ADB	透明	1	100
AMPure XP 磁珠	AXP	琥珀色	3	1200
洗脱缓冲液	EB	黑色	1	1500
测序缓冲液	SB	红色	1	1700
文库颗粒	LIB	粉色	1	1800
文库溶液	LIS	白色管盖，粉色标签	1	1800
测序芯片冲洗液	FCF	透明	1	15500
测序芯片系绳	FCT	紫色	2	200
快速连接条形码	RB01-96	-	3 盘	每孔 8 µl

本产品包含由贝克曼库尔特公司（Beckman Coulter, Inc）生产的 AMPure XP 试剂，并可与试剂盒一起于-20°C 下储存（试剂稳定性将不受损害）。

We have developed four optimised extraction methods to generate high quality genomic DNA from your cell cultures, allowing maximised sequencing output using this method.

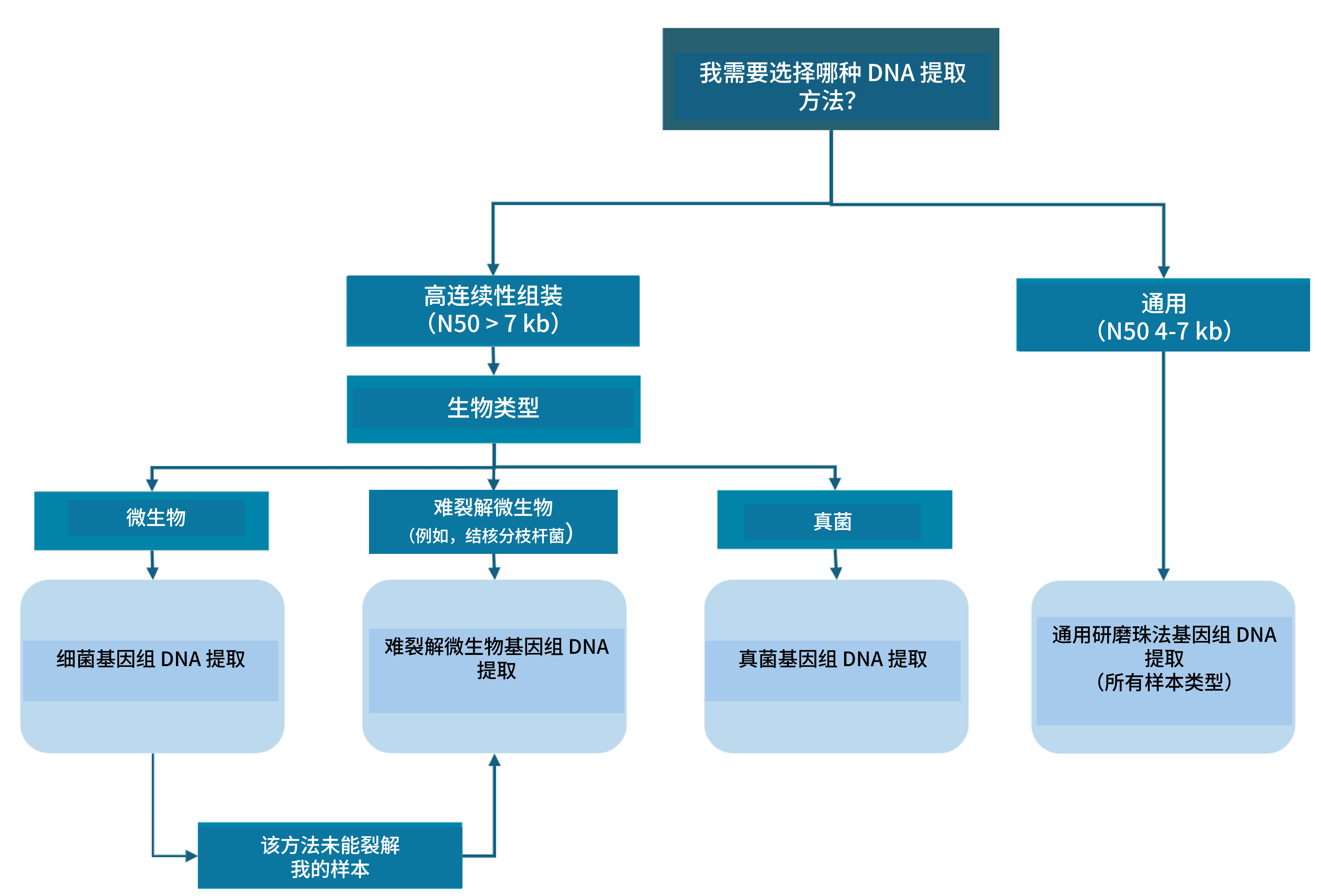

What extraction method is right for me?

Sample extraction method	Sample type	Sample Input	Expected yield	Expected DNA Integrity Number (DIN)	Average sequencing read lengths	Extraction kits used
Universal bead-beating gDNA extraction	Universal applications: bacteria, fungi or yeast	1 ml liquid overnight culture (~1 x 10^8 – 10^9 cfu/ml) or half of a loop of colonies from a plate	>200 ng/µl per sample	7-9	~4-7 kb	QIAGEN PowerBead Tube and Promega Maxwell® RSC PureFood Pathogen kit
Bacteria gDNA extraction	Bacterial	200 µl liquid overnight culture (~1 x 10^8 – 10^9 cfu/ml) or 1/8 of a loop of colonies from a plate	~15-20 ng/µl per sample	9	>7 kb - Size will vary based on sample input species	NEB Monarch Spin gDNA Extraction Kit
Hard to lyse organisms gDNA extraction	Mycobacterium tuberculosis (or hard to extract bacterial samples)	5 – 10 mg cells from solid or liquid media	~15-40 ng/µl per sample	8	>7 kb - Size will vary based on sample input species	NEB Monarch Spin gDNA Extraction Kit
Fungi gDNA extraction	Fungi or yeast	2 ml of ~1 x 10^7 cfu/ml overnight culture or a full 10 µl inoculating loop from a plate	~40 ng/µl per sample	N/A	>7 kb - Size will vary based on sample input species	NEB Monarch Spin gDNA Extraction Kit

Note: The yield, DIN and sequencing read length of extracted DNA may vary depending on sample quality and species. Please ensure you are following the correct method and using high-quality sample inputs.

Follow the links in the table above for the extraction methods documentation.
Alternatively, these extraction methods can be found in the Extraction Protocols tab in the Documentation space on the Nanopore Community

This method has been developed to process 24 samples with a genome size of up to 7 Mb simultaneously.

For samples with a larger genome size ( >7 Mb), we recommend lowering the number of samples to be barcoded and sequenced simultaneously to 8 samples.

For optimal output, we currently do not recommend using fewer than 4 barcodes.

Note: This method provides a standardised process for sample throughput that we have validated in-house. These settings will be applicable to the majority of use-cases and we recommend all new users to follow the recommended method. Experienced users can adjust sample throughput (4 to 48 barcoded samples) based on sample quality, genome size, and coverage requirements.

The sequencing device control, data acquisition and real-time basecalling are carried out by the MinKNOW software. Please ensure MinKNOW is installed on your computer or device. Further instructions for setting up a sequencing run can be found in the MinKNOW protocol.

We recommend setting up a sequencing run on a MinION or GridION device using the basecalling and barcoding recommendations outlined below. All other parameters can be left to their default settings.

We recommend performing downstream analysis using EPI2ME which facilitates bioinformatic analyses by allowing users to run Nextflow workflows in a desktop application. EPI2ME maintains a collection of bioinformatic workflows which are curated and actively maintained by experts in long-read sequence analysis.

Further information about the available EPI2ME workflows are available here, along with the Quick Start Guide to start your first bioinformatic workflow.

For the accurate and reliable assembly or alignment of bacterial or fungal isolate genomes generated from the included protocols, we recommend using the wf-bacterial-genomes workflow. At its core, the workflow is an efficient assembly pipeline which also polishes genomes using Medaka.

Whilst running the workflow using the default parameters will produce high quality genome assemblies, using the ‘Isolates’ mode will perform additional analyses designed to increase genome quality and aid genome interrogation for common pathogens in the clinical and food safety fields. ‘Isolates’ analyses includes MLST(7-gene), species confirmation and AMR prediction in addition to sample-specific reports.

Note: You can also run this workflow through command line. However, we only recommend this option for experienced users. For more information, please visit the wf-bacterial-genomes page on GitHub.
