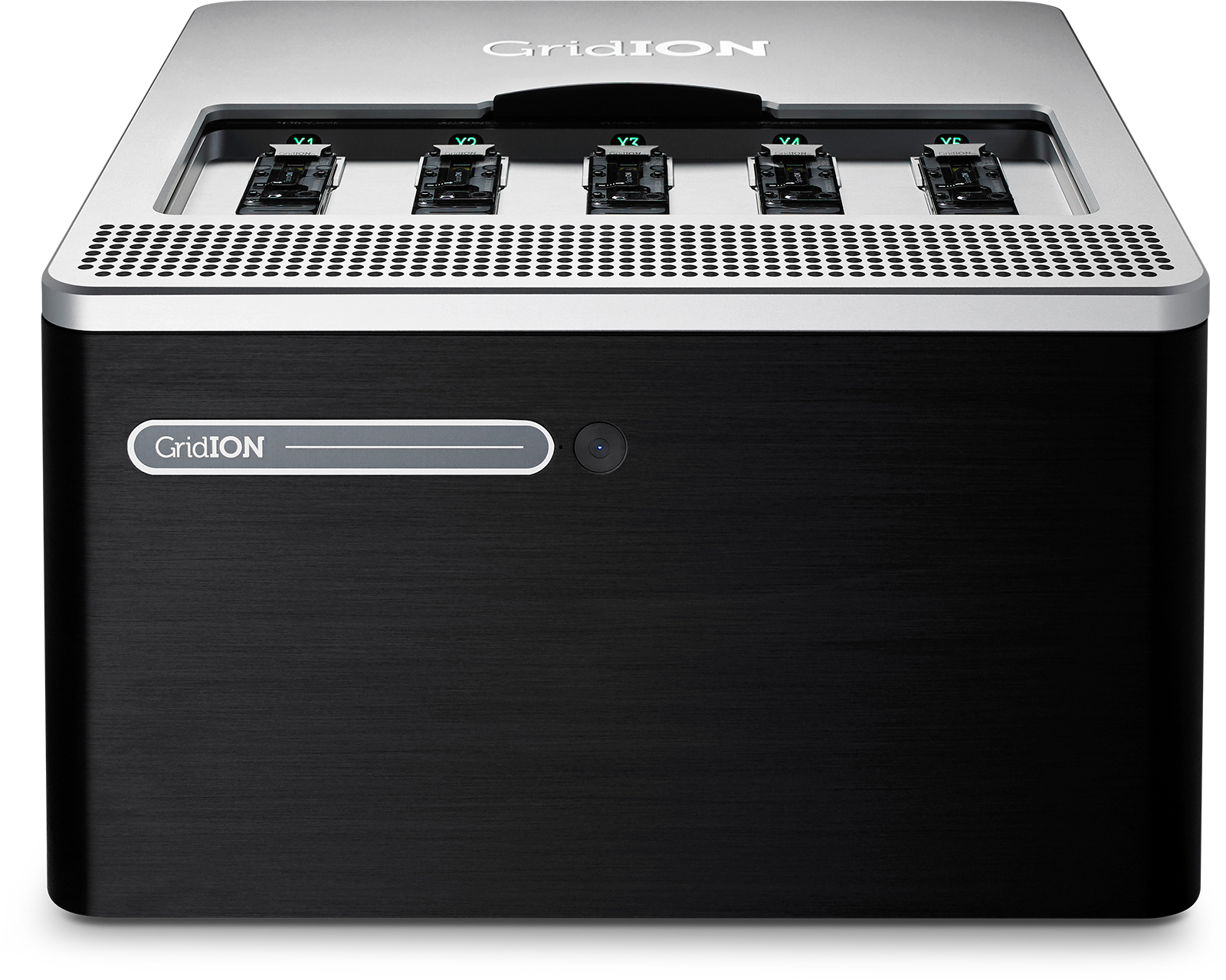

GridION front view
Powerful and flexible multi-project sequencer with integrated analysis
Buy

Ultimate flexibility

1 - 5 flow cells

Run multiple DNA/RNA sequencing experiments

Integrated compute

Onboard, real-time analysis

Up to 240 Gb*

High-throughput data generation

* Theoretical max output when system is run for 72 hours at 400 bases / second. Outputs may vary according to library type, run conditions, etc.

Specifications

Download brochure
GridION on black background with shadow
Read length

Nanopores read the length of DNA or RNA presented to them — from short to ultra-long (longest >4 Mb)

Dimensions

Compact benchtop device with integrated compute suitable for any lab

  • Size: W 370 mm, H 220 mm, D 365 mm
  • Weight: 11 kg
240 Gb output*

Up to 48 Gb per MinION Flow Cell / 2.8 Gb per Flongle Flow Cell*

Suitable applications
  • Bacterial metagenomics
  • Bacterial isolate
  • Bacterial whole genome
  • Viral amplicon
  • Full length 16s rRNA
  • Whole exome
  • Whole transcriptome (cDNA)
  • smaller transcriptomes (direct RNA)
  • Theoretical max output when system is run for 72 hours (or 16 hours for Flongle) at 400 bases / second. Outputs may vary according to library type, run conditions, etc.
On demand

Sequence what you need, when you need it

  • Run flow cells individually or together — no more sample batching
  • Continuously load flow cells as demand changes
  • Mix MinION and Flongle Flow Cells to suit experimental needs
  • Run multiple DNA or RNA experiments at once
  • Barcode for even more samples
Accessible
  • Cost effective device
  • Simple plug and play operation
  • Integrated compute — minimal IT infrastructure required
Powerful, integrated compute

  • Sequencing and analysis in one powerful device

  • Compute supports analysis of linked P2 Solo

  • Latest generation CPU / GV100 GPU accelerator

  • 64 GB RAM / 4 TB SSD storage

  • Ethernet connectivity

  • Instrument control and data analysis software
